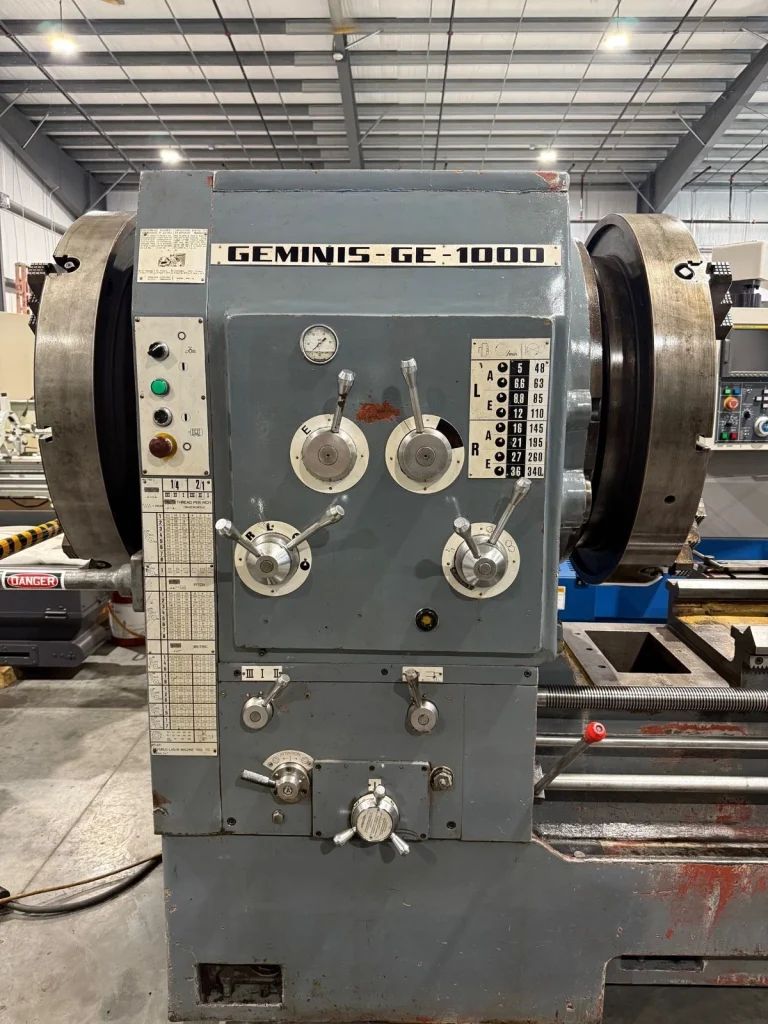

Available now : used GEMINIS Republic Lagun GE-1000 Hollow Spindle Lathe Chuck 35 inch Spindle Bore 20 inch Heavy-Duty – Year 1988 made in Spain
| GEMINIS Republic Lagun GE-1000 Hollow Spindle Lathe – 20.25″ Spindle Bore – Year 1988 | |
|---|---|
| Manufacturer | GEMINIS / Republic Lagun |
| Model | GE-1000 |
| Year of Manufacture | 1988 |
| Serial Number | 4885 |
| made in | Spain |
| Machine Type | Heavy-Duty Hollow Spindle / Big Bore Lathe |
| Capacity | |
| Swing Over Bed Ways | 39-3/8″ (1,000 mm) |
| Swing in Gap | 48-3/4″ (1,238 mm) |
| Swing Over Cross Slide | 28-3/8″ (721 mm) |
| Length of Gap | 13-3/8″ (340 mm) |
| Distance Between Centers | 120″ (3,048 mm) |
| Spindle | |
| Spindle Bore | 20.25″ (514 mm) |
| Spindle Speed Range | 5 – 340 RPM |
| Main Motor Power | 30 HP (Approx. 22.4 kW) |
| Bed & Tailstock | |
| Bed Width | 21-5/8″ (549 mm) |
| Tailstock Quill Travel | 12″ (305 mm) |
| Tailstock Quill Taper | No. 6 Morse Taper |
| Threading | |
| Inch Threading Range | 1 – 56 TPI |
| Metric Threading Range | 0.5 – 30 mm |
| Equipment & Accessories | |

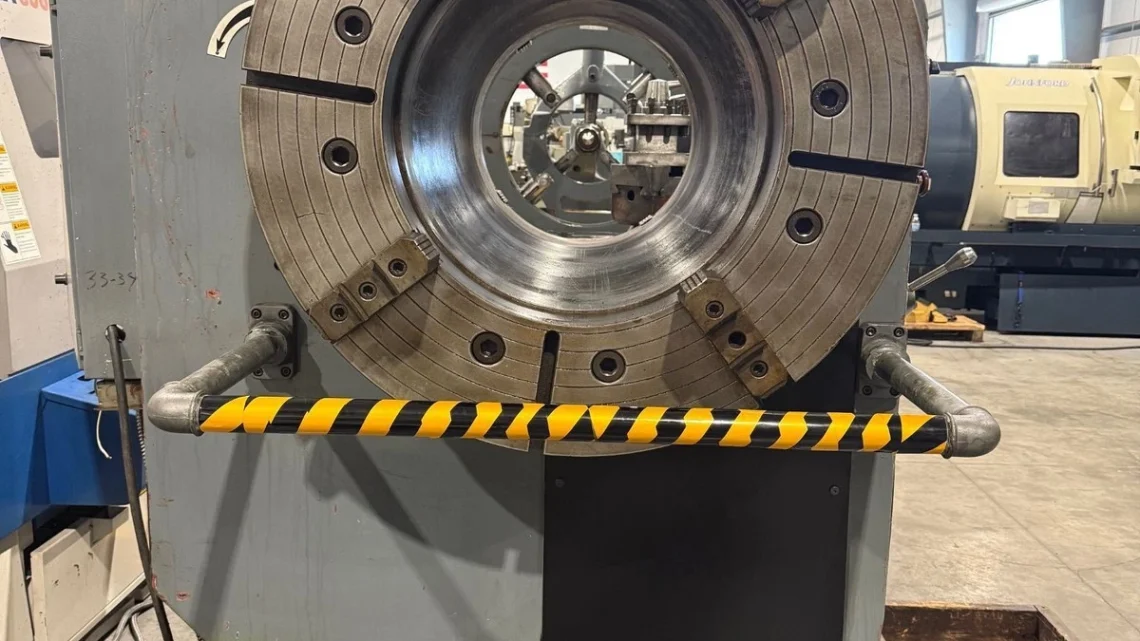

| Chucks | (2) 35″ 4-Jaw Chucks |
| Steady Rest #1 | 30-1/2″ Capacity |
| Steady Rest #2 | 17″ Capacity |
| Follow Rest | Included |
| Digital Readout (DRO) | ACU-RITE 2-Axis Digital Readout |
| Tool Post | 4-Way Tool Post |
| Carriage | Power Rapids on Carriage |
| Taper Attachment | Included with Extra Guide Block |
| Live Center | Included |
| Change Gears | Included |
| Coolant System | Coolant Pump with Built-In Reservoir |
| Electrical & Machine Dimensions | |
| Electrical Supply | 460 V / 3-Phase / 60 Hz |
| Machine Weight | 20,000 lbs (Approx. 9,072 kg) |
| Machine Dimensions (L × W × H) | 220″ × 85″ × 90″ (Approx. 5,588 × 2,159 × 2,286 mm) |
