Specification	Unit	BOSCHERT G Bend 2080	BOSCHERT G Bend 2580	BOSCHERT G Bend 3080	BOSCHERT G Bend 3110	BOSCHERT G Bend 3140	BOSCHERT G Bend 3175	BOSCHERT G Bend 3210	BOSCHERT G Bend 3290
Bending Force	tons	80	80	80	110	140	175	210	290
Working Length	mm	2100	2600	3100	3100	3100	3100	3100	3100
Distance Between Uprights	mm	1550	2050	2550	2550	2550	2550	2550	2550
Throat Depth	mm	400	400	400	400	400	400	400	400
Daylight	mm	515	515	515	515	515	515	515	515
Punch Stroke	mm	250	250	250	250	250	250	250	250
Table Width	mm	80	80	80	80	80	80 – 220	80 – 220	80 – 220
Fast Speed	mm/sec	0 – 180	0 – 180	0 – 180	0 – 180	0 – 180	0 – 180	0 – 180	0 – 180
Working Speed	mm/sec	0 – 10	0 – 10	0 – 10	0 – 10	0 – 10	0 – 10	0 – 10	0 – 10
Upstroke Speed	mm/sec	0 – 155	0 – 155	0 – 155	0 – 160	0 – 160	0 – 140	0 – 130	0 – 120
Hydraulic Pressure (Max.)	bar	275	275	275	275	275	275	275	275
Main Electric Motor	kW	7.5	7.5	7.5	11	15	15	22	30
Length (A)	mm	3200	3700	4200	4400	4400	4500	4500	4900
Width (B)	mm	1500	1585	1585	1650	1700	1785	1910	1935
Height (C)	mm	2500	2542	2542	2800	2800	2800	2850	2890
Approximate Weight	kg	5800	6100	7200	8800	11500	13500	16800	20500

Specification	Metric	Imperial
Manufacturer	BOSCHERT	BOSCHERT
Model	G Bend 3210	G Bend 3210
Machine Type	CNC Hydraulic Press Brake	CNC Hydraulic Press Brake
Year of Manufacture	2016	2016
Machine Number	B3025	B3025
Condition	Used	Used
Operational Status	Fully Functional	Fully Functional
Operating Hours	1,004 Hours	1,004 Hours
Bending Capacity
Bending Force	210 tonnes	231 US Tons
Working Length	3,100 mm	122.0″
Distance Between Uprights	2,550 mm	100.4″
Throat Depth	400 mm	15.75″
Daylight	515 mm	20.28″
Punch Stroke	250 mm	9.84″
Table Width	80–220 mm	3.15–8.66″
Performance
Fast Speed	0–180 mm/sec	0–7.09 in/sec
Working Speed	0–10 mm/sec	0–0.39 in/sec
Return Speed	0–130 mm/sec	0–5.12 in/sec
Maximum Hydraulic Pressure	275 bar	3,988 PSI
Main Motor Power	22 kW	29.5 HP
Machine Dimensions
Length	4,500 mm	177.2″
Width	1,910 mm	75.2″
Height	2,850 mm	112.2″
Machine Weight	16,800 kg	37,038 lbs
Electrical
Input Voltage	400 V	400 V
Input Current	50 A	50 A
Equipment
Certification	CE Marking	CE Marking



Why Choose the BOSCHERT G Bend 3210?

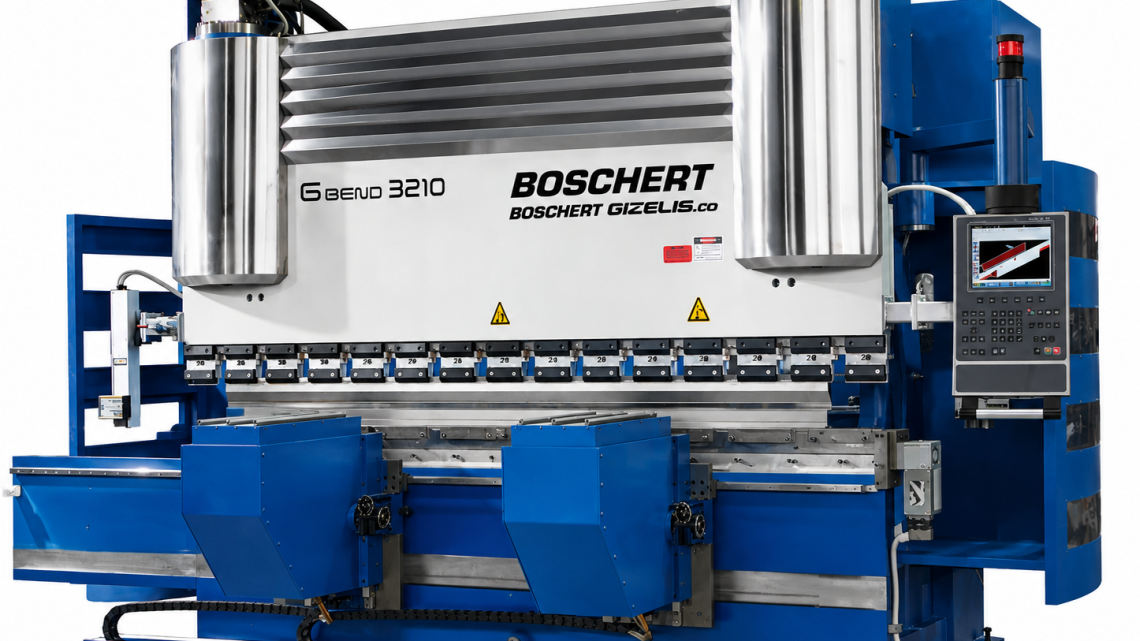

The BOSCHERT G Bend 3210 is a premium CNC hydraulic press brake designed for high-precision sheet metal fabrication. Offering a 210-ton bending capacity and a 3,100 mm working length, it is ideally suited for medium to heavy-duty bending applications across a wide range of industries. With only 1,004 operating hours, this 2016 machine has seen exceptionally light use and remains in fully functional condition. Its rigid frame, generous daylight opening, deep throat, and powerful 22 kW hydraulic drive provide excellent accuracy, repeatability, and long-term reliability. The G Bend 3210 combines fast approach and return speeds with smooth hydraulic control, enabling efficient production while maintaining high bending precision. The machine is suitable for manufacturing structural steel components, electrical enclosures, agricultural equipment, automotive parts, architectural metalwork, and general fabrication. Manufactured by BOSCHERT and carrying CE certification, this press brake represents an excellent opportunity for manufacturers seeking a reliable European-built bending solution with exceptionally low operating hours.
