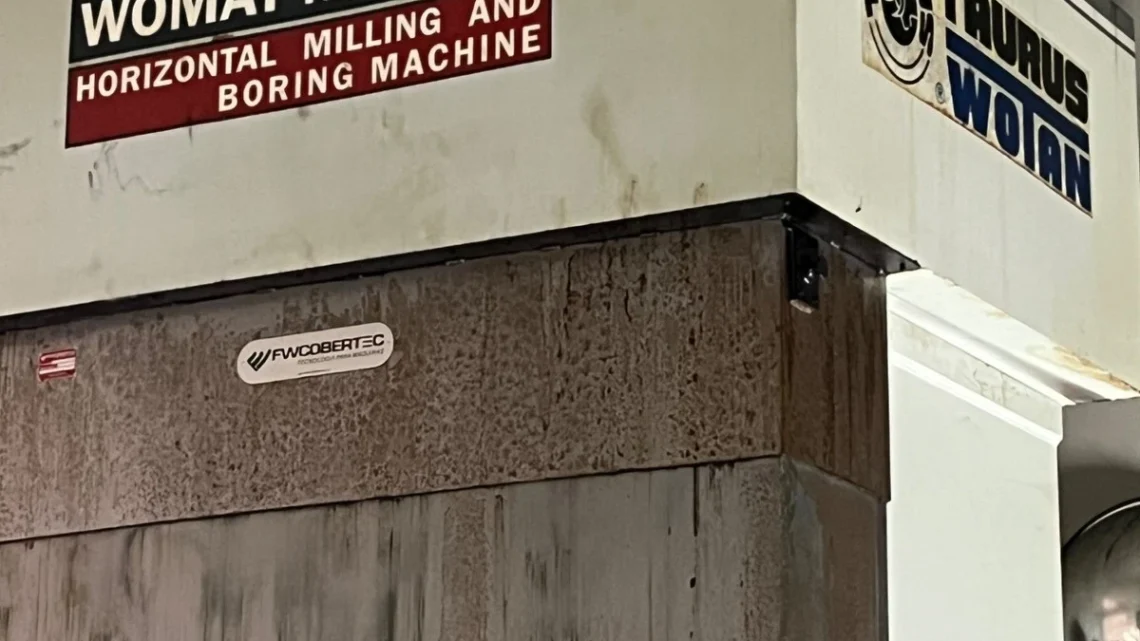

| TAURUS WOTAN WOMAT M3 FT-P
CNC RAM-FLOOR Type Horizontal Milling-Boring Machine – Year 2011 |
| WORKSPINDLE |
| Spindle Diameter (Milling Machine) |
4.7 in |
120 mm |
| RAM Cross-Section |
13 x 13 in |
340 x 340 mm |
| Tool Holder |
ISO 50 (DIN 69871) |
| Main Power Supply (100% Duty Cycle) |
50 HP |
37 kW |
| Maximum Torque (S1) |
1358 Nm |
| Spindle Speed Range |
5 – 3000 rpm |
5 – 5000 rpm* |
| WORKING AREA |
| Column Cross Travel (X) |
157.4 in |
4000 mm |
| Additional X Travel Option |
39.3 in each |
1000 mm each |
| Headstock Vertical Travel (Y) |
78 in |
2000 mm |
| Optional Y Travel |
98 in / 118 in |
2500 mm / 3000 mm |
| RAM Longitudinal Travel (W) |
39 in |
1000 mm |
| Boring Spindle Longitudinal Travel (Z) |
23.6 in |
600 mm |
| FEEDS |
| Feed Range in X, Y, Z, W |
0.04 – 393 ipm |
1 – 10000 mm/min |
| Rapid Traverse for X, Y, Z, W |
787 ipm |
20 m/min |
| Feed Thrust |
4046 lbf |
18000 N |
| ACCURACY |
| Machine Geometry Accuracy |
According to DIN 8601 / 8615 |
| Positioning Accuracy (VDI/DGQ 3441) |
0.0007 in |
0.018 mm |
| Repeatability (VDI/DGQ 3441) |
0.0002 in |
0.005 mm |
| Circular Interpolation Accuracy |
0.0007 in |
0.018 mm |
| INSTALLATION AREA |
| Installation Area (Approx.) |
270 ft² |
25 m² |
| Net Weight Basic Machine (Approx.) |
79,400 lb |
36,000 kg |
