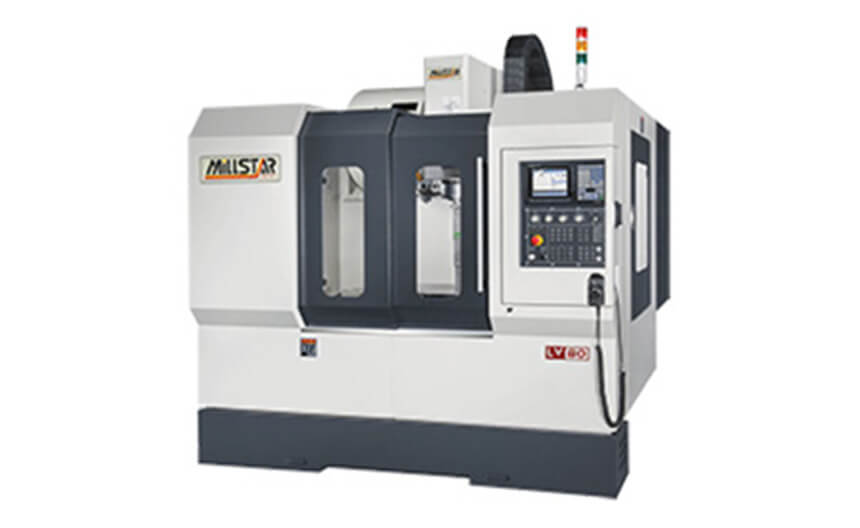

Available now : MILLSTAR LV100 CNC Vertical Machining Center – Year 2022 made in Taiwan
| MILLSTAR LV100 CNC Vertical Machining Center – Year 2022 | ||
|---|---|---|
| Specification | Metric | Imperial |
| Manufacturer | MILLSTAR | MILLSTAR |
| Model | LV100 | LV100 |
| Year | 2022 | 2022 |
| Machine Type | CNC Vertical Machining Center | CNC Vertical Machining Center |
| Work Table Size | 1,100 × 500 mm | 43.31 × 19.69 in |
| T-Slots (Size × Quantity) | 18 mm × 5 T-Slots | 0.709 in × 5 T-Slots |
| T-Slot Pitch | 80 mm | 3.15 in |
| Maximum Table Load | 600 kg | 1,323 lbs |
| X-Axis Travel | 1,000 mm | 39.37 in |
| Y-Axis Travel | 500 mm | 19.69 in |
| Z-Axis Travel | 500 mm | 19.69 in |
| Spindle Nose to Table Surface | 125 – 625 mm | 4.92 – 24.61 in |
| Spindle Center to Column Guideway | 550 mm | 21.65 in |
| Spindle Taper | BT40 | BT40 |
| Spindle Diameter | Ø70 mm | Ø2.76 in |
| Maximum Spindle Speed | 10,000 rpm (Belt Driven) | 10,000 rpm (Belt Driven) |
| Guideway Type | Linear Guideways on X, Y and Z Axes | Linear Guideways on X, Y and Z Axes |
| X/Y/Z Cutting Feed Rate | 10 / 10 / 10 m/min | 32.81 / 32.81 / 32.81 ft/min |
| X/Y/Z Rapid Traverse Rate | 36 / 36 / 36 m/min | 118.11 / 118.11 / 118.11 ft/min |
| Tool Magazine Type | Armless Type | Armless Type |
| Tool Magazine Capacity | 20 Tools | 20 Tools |
| Tool Selection Method | Bi-Directional Shortest Path | Bi-Directional Shortest Path |
| Maximum Tool Diameter × Length | Ø100 × 250 mm | Ø3.94 × 9.84 in |
| Maximum Tool Weight | 7 kg | 15.43 lbs |
| Tool Shank | BT-40 | BT-40 |
| Spindle Motor Power (Continuous / 30 min.) | 7.5 / 11 kW | 10.05 / 14.75 HP |
| X/Y/Z Servo Motors | 2.2 / 2.2 / 2.0 kW | 2.95 / 2.95 / 2.68 HP |
| X/Y/Z Ball Screws | Ø36 mm × 12 mm Pitch | Ø1.42 in × 0.472 in Pitch |
| Coolant Pump | 660 W | 0.89 HP |
| Coolant Tank Capacity | 330 Liters | 87.18 Gallons (US) |
| Splash Guard | Full Splash Guard | Full Splash Guard |
| Machine Dimensions (L × W × H) | 2,800 × 2,050 × 2,380 mm | 110.24 × 80.71 × 93.70 in |
| Net Weight | 4,700 kg | 10,362 lbs |
| Gross Weight | 5,200 kg | 11,464 lbs |
| Shipping Requirement | 40′ HQ Container (4 Machines per Container) | 40′ High Cube Container (4 Machines per Container) |
