HSG HS-R5 CNC Fiber Tube Laser Cutting Machine 2kW – Year 2021

Specification	Metric	Imperial
Manufacturer	HSG Laser
Model	HS-R5
Year	2021
Machine No.	921R50022874
Condition	Used – Fully Functional
Operating Hours	30,000 h
Control System	CNC
Automation	Automatic
Laser Type	Fiber Laser
Laser Source	MAX Photonics
Laser Power	2 kW	2,000 W
Maximum Tube Diameter	200 mm	7.87″
Maximum Tube Length	6,000 mm	236.2″
Working Length	6,000 mm	236.2″
X-Axis Travel	6,500 mm	255.9″
Y-Axis Travel	360 mm	14.2″
Maximum Tube Wall Thickness	6 mm	0.236″
Feed Rate (X-Axis)	120 m/min	394 ft/min
Positioning Speed	120 m/min	394 ft/min
Cutting Speed	1,600 mm/min	63 in/min
Positioning Accuracy	±0.03 mm	±0.0012″
Repeat Positioning Accuracy	±0.03 mm	±0.0012″
Power Supply	380 V / 50 Hz / 3-Phase	380 V / 50 Hz / 3-Phase
Cooling System	Water Cooling
Machine Weight	14,700 kg	32,408 lbs
Overall Dimensions (L × W × H)	12,500 × 4,700 × 2,600 mm	492.1″ × 185.0″ × 102.4″

The HSG HS-R5 CNC Fiber Tube Laser Cutting Machine, manufactured in 2021, is a high-performance automatic tube laser designed for precision cutting of a wide variety of tube profiles. Equipped with a 2 kW MAX Photonics fiber laser source, this machine delivers excellent cutting quality and productivity for industrial tube fabrication applications. Capable of cutting round, square, rectangular, oval, D-shaped, and U-shaped tubes, the HS-R5 is an ideal solution for manufacturers in the automotive, furniture, construction, agricultural equipment, and metal fabrication industries.

Equipment

• 2 kW MAX Photonics fiber laser source (recently replaced with a new unit)
• CNC automatic tube processing system
• Water cooling unit
• Fume extraction system
• Safety light barrier
• Emergency stop system
• Regularly maintained and currently in daily production
• Inspection and live test available upon appointment

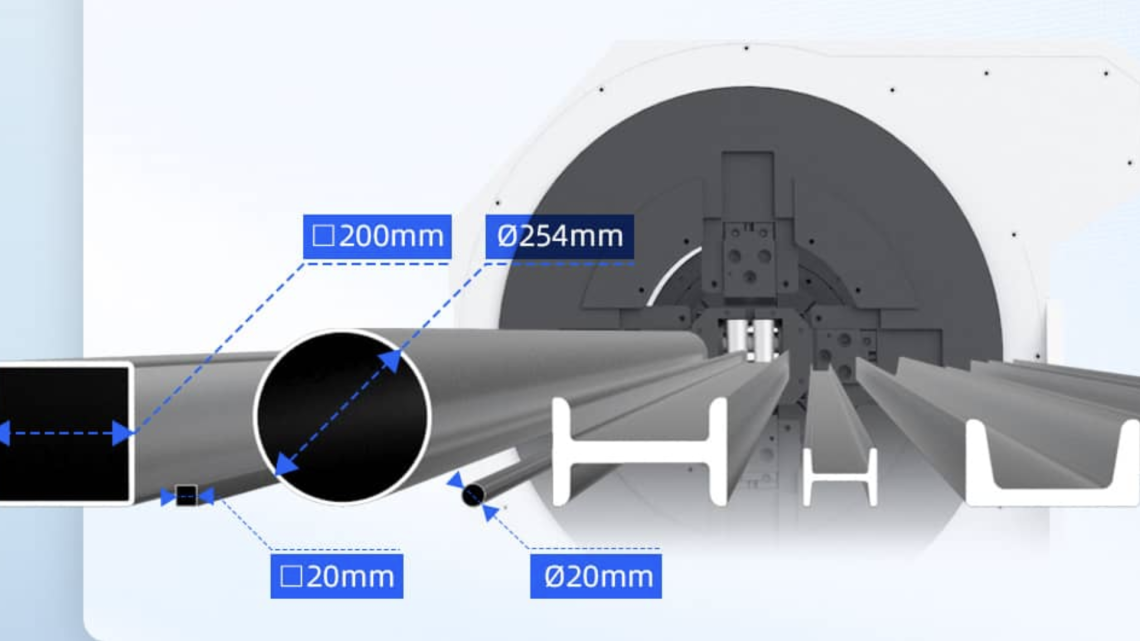

• Capable of cutting round, square, rectangular, oval, D-shaped, and U-shaped tubes
