Available now : Brother SPEEDIO R450X1 CNC Tapping Drilling Center

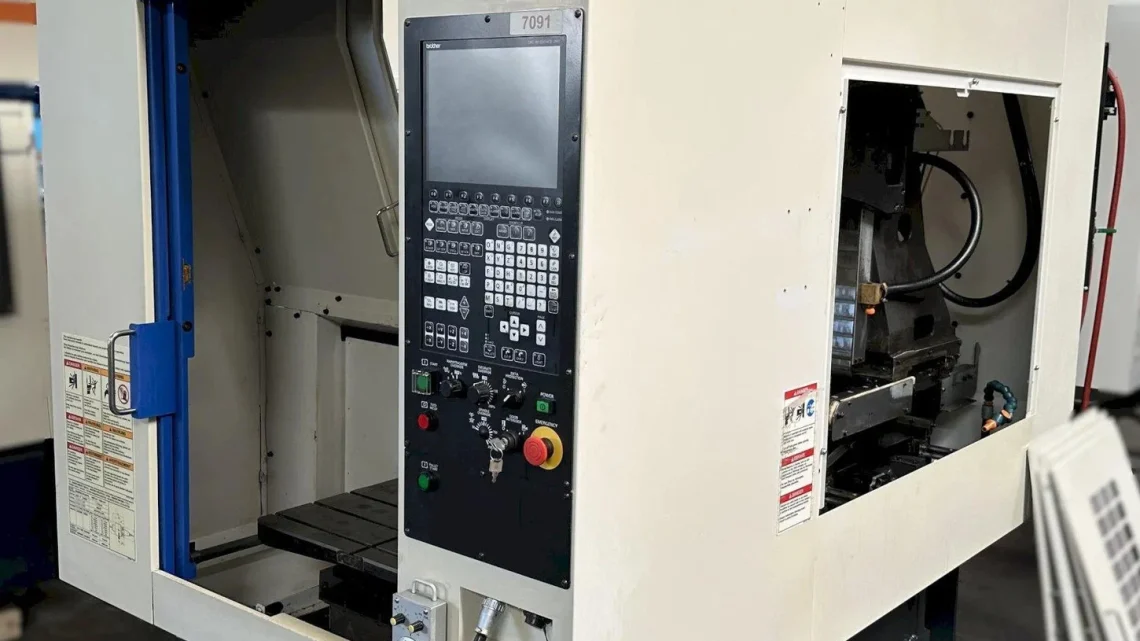

Brother SPEEDIO R450X1 CNC Tapping Center – Year 2014
| Machine Overview | ||
|---|---|---|
| Make | Brother | |
| Model | SPEEDIO R450X1 | |
| Year | 2014 | |
| Serial Number | 111307 | |
| Machine Type | CNC Tapping Center / Compact Machining Center | |
| Technical Specification | Imperial | Metric |
|---|---|---|
| Working Area Size | 23.6 in x 11.8 in | 600 mm x 300 mm |
| Max Loading Capacity | 265 lbs | 120 kg |
| X-Axis Travel | 17.7 in | 450 mm |
| Y-Axis Travel | 12.6 in | 320 mm |
| Z-Axis Travel | 12 in | 305 mm |
| Spindle Speed (Max) | 10,000 RPM | 10,000 RPM |
| Tapping Speed | 6,000 RPM | 6,000 RPM |
| Spindle Taper | BT-30 | BT-30 |
| Max Tool Length | 7.9 in | 200 mm |
| Max Tool Diameter | 3.1 in | 80 mm |
| Max Tool Weight | 6.6 lbs | 3 kg |
| Rapid Feed (X/Y/Z) | 1,969 IPM | 50 m/min |
| Cutting Feed | 0.04 – 1,181 IPM | 1 – 30,000 mm/min |
| Tool Changer Capacity | 14 Tools | 14 Tools |
| Chip to Chip Time | 1.5 sec | 1.5 sec |
| Tool to Tool Time | 7 sec | 7 sec |
| Features & Equipment | |
|---|---|
| Machine Type | High-Speed CNC Tapping Center |
| Spindle | 10,000 RPM High-Speed Spindle |
| Tapping Capability | High-Speed Tapping up to 6,000 RPM |
| Tool Changer | 14-Station Automatic Tool Changer |
| Pallet System | Pallet Changing System (Compact Design) |
| Design | Compact High-Speed Machining Center |
