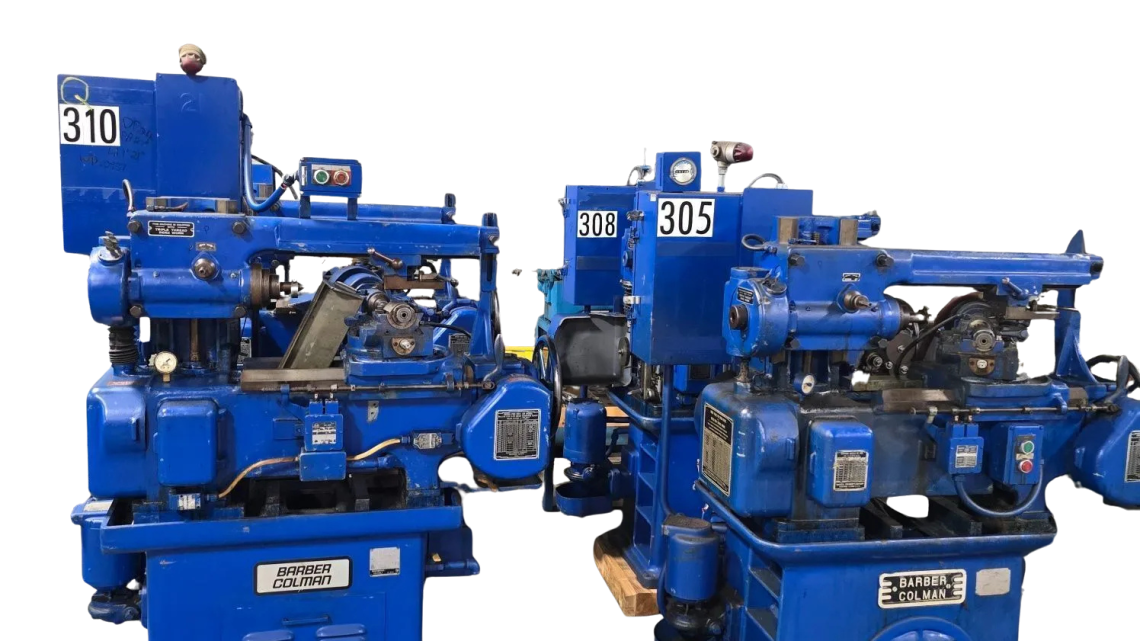

4 Units Available Now – Barber Colman 6-10 Gear Hobbers Ready from Stock
| Specification | Metric | Imperial |
|---|---|---|
| Machine Type | Gear Hobbing Machine (C-Frame) | Gear Hobbing Machine (C-Frame) |
| Make / Model | Barber Colman 6-10 | Barber Colman 6-10 |
| Quantity Available | 4 Units | 4 Units |
| Max Work Diameter | 152 mm | 6 in |
| Max Hob Carriage Travel | 267 mm | 10.5 in |
| Max Distance: Spindle Face to Tailstock Center | 400 mm | 15.75 in |
| Max Diametral Pitch (1 Cut) | 16 DP (Ø 50.8 mm) | 16 DP (2 in dia) |
| Max Diametral Pitch (1 Cut) | 48 DP (Ø 152 mm) | 48 DP (6 in dia) |
| Max Hob Diameter | 52 mm | 2.06 in |
| Hob Speed | 133 – 533 RPM | 133 – 533 RPM |
| Work Spindle Bore | 26 mm | 1.03 in |
| Machine Weight | 1,225 kg | 2,700 lbs |
| Electrical | 220 / 440 V | 220 / 440 V |
| Features & Equipment |
|---|
| C-Frame Style Construction |
| V-Way Slide Construction for Stability |
| Triple Thread Standard Worm |
| Bayonet Center |
| Manual Hob Shift |
| Standard Hob Head |
| Change Gears Included |
| 1 Hob Arbor Included |
| Suitable for Gear & Spline Cutting Applications |
| Machines Available for Inspection Under Power |
| Good Mechanical Condition |
