| TSUGAMI SS207 / SS207-5AX CNC Precision Automatic Lathe – Technical Specifications | |
|---|---|
| Manufacturer | TSUGAMI Corporation |
| Machine Type | CNC Precision Automatic Lathe / Swiss Type CNC Lathe |
| Models | SS207 / SS207-5AX |
| SS207-5AX Type | 5-Axis Simultaneously Controlled Type |
| Bar Stock Chucking Diameter | Ø3 mm to Ø20 mm |
| Maximum Machining Length | 250 mm with Stationary Guide Bushing / 80 mm with Carrier Type Rotary Guide Bushing / 210 mm with Direct-Drive Rotary Guide Bushing |
| Maximum Main Spindle Drilling Diameter | Ø10 mm |
| Maximum Main Spindle Tapping Diameter | M10 |
| Maximum Back Spindle Chucking Diameter | Ø20 mm |
| Maximum Back Spindle Drilling Diameter | Ø8 mm |
| Maximum Back Spindle Tapping Diameter | M8 |
| Maximum Cross Drilling Diameter | Ø6 mm |
| Maximum Cross Tapping Diameter | M5 |
| Maximum B-Axis Drilling Diameter | Ø6 mm |
| Maximum B-Axis Tapping Diameter | M5 |
| Maximum B-Axis End Milling Speed | 5,000 rpm |
| Main Spindle Speed | 200 to 10,000 rpm |
| Back Spindle Speed | 200 to 10,000 rpm |
| Total Tool Storage Capacity | 35 Tools |
| Tool Size | □12 mm × 100 mm |
| Rapid Traverse Rate | 32 m/min on X1 and Y1 Axes / 24 m/min on X2 Axis / 15 m/min on Y2 Axis |
| Main Spindle Motor | 2.2 / 3.7 kW |
| Back Spindle Motor | 1.5 / 2.2 kW |
| Cross Drill Front Tool Post Motor | 0.75 kW |
| Swiveling Tool Spindle Motor | 1.0 kW |
| Machine Weight | 3,300 kg |
| Power Source Requirement | 14.6 kVA |
| Machine Dimensions | 2,110 × 1,200 × 1,885 mm |
| NC Unit | FANUC 32i-B for SS207 / FANUC 31i-B5 for SS207-5AX |
| Axis Names | X1, Z1, Y1, X2, Z2, Y2, C1, C2, B1 |
| Least Input Increment | 0.001 mm diameter value for X1 / X2 axes |
| Least Command Increment | X1 / X2 Axis: 0.0005 mm / Others: 0.001 mm |
| Maximum Programmable Value | ±8 Digit |
| Interpolation Method | Linear / Circular |
| Rapid Traverse Rate – NC | 32 m/min; X1 / Y1 Axis: 24 m/min; Y2 Axis: 15 m/min |
| Feedrate Override | 0 to 150% in 10% increments |
| Dwell | G04 0 to 99999.999 |
| ABS / INC Command | X, Z, Y, C, B Absolute; U, W, V, H Incremental |
| Tool Offset Value | ±8 Digit |
| Tool Offset Pairs | 99 |
| Display | 10.4″ Color LCD |
| Display Language | English |
| Part Program Storage Size | 64 Kbytes |
| Number of Registerable Programs | 63 |
| Auxiliary Functions | Main: 5 Digits / Back: 3 Digits |
| Spindle Functions | S 5 Digits |
| Tool Functions | T 4 Digits |
| B-Axis Swiveling Angle | 0° to 135° |
| Continuous B-Axis Tooling | Front Rotary Tool: 3 Positions / Back Rotary Tool: 3 Positions |
| Automatic Programming Software | Standard |
| CAD/CAM Capability | 4-Axis / 5-Axis Simultaneous Control with CAD/CAM Software |
| Thread Whirling / Hobbing | Possible without Dedicated Attachment by B-Axis Control |
| Deep Hole Drilling | Up to 100 mm using Deep Hole Drill Holder beside the Back Spindle |
| Machine Standard Accessories | |
|---|---|
| Front Tool Post | 3-Spindle Cross Drill |
| Deep Hole Drill Holder | Ø20 × 2 Holes |
| Main Spindle C-Axis | Included |
| Back Spindle C-Axis | Included |
| Automatic Programming Software | Included |
| Tool-Height Compensation Function | Included |
| Tool Counter | Included |
| Periodic Maintenance Screen | Included |
| Main Spindle Adapter | Included |
| Back Spindle Adapter | Included |
| Door Interlock | Tooling Zone Slide Door / Main Spindle Side Door |
| Coolant Level Detector | Included |
| Spindle Cooling Unit | Included |
| Standard Tools | Included |
| Transit Clamps | Included |
| Automatic Power Shut-Off | Included |
| Back Spindle Air Purge | Included |
| Cross Drill Air Purge | Included |
| Main Spindle Brake | Included |
| NC Standard Accessories | |
|---|---|
| Chasing Function | Included |
| Continuous Thread Cutting | Included |
| Manual Pulse Generator | Included |
| Memory Card I/O Interface | Included |
| Back Ground Editing | Included |
| Run Time / Parts Number Display | Included |
| Custom Macro | Included |
| Constant Surface Speed Control | Included |
| Spindle Synchronization Control | Rotation / Phase |
| Z1 / Z2 Axis Synchronous Control | Included |
| Tool Geometry / Wear Offset | Included |
| Programmable Data Input | Included |
| Chamfering / Corner R | Included |
| Tool Nose Radius Compensation | Included |
| HRV Control | Included |
| Multiple Repetitive Cycle | Included |
| Expanded Program Editing | Included |
| Canned Cycle Drilling | Included |
| Rigid Tap | Main Spindle, Back Spindle, Cross / Back Tool |
| Cut-Off Detection | Differential Speed Detection |
| Spindle Speed Fluctuation Detection | Included |
| Stored Stroke Check | 2 / 3 |
| 3-Dimensional Coordinate Conversion | Included |
| AI Contour Control Function | SS207-5AX |
| Data Server Function | SS207-5AX |

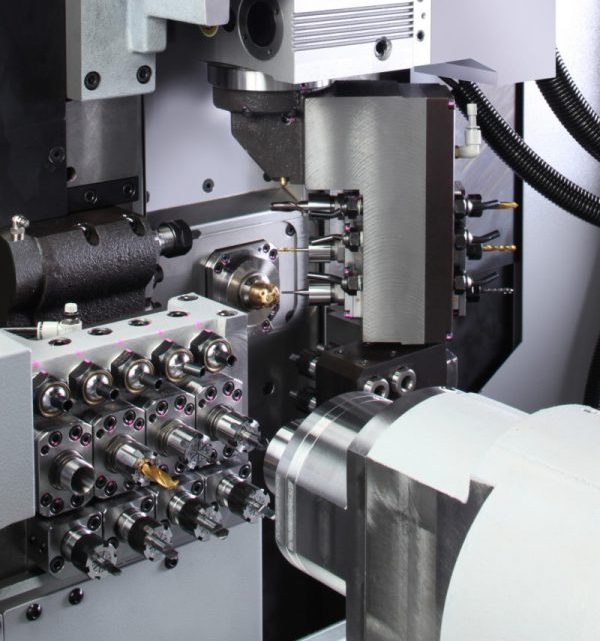

| TSUGAMI HS207-5AX CNC Swiss Lathe Maximum Bar Capacity Ø20 mm with Bloader STG Bar Feeder – Year 2020 | ||
|---|---|---|
| Specification | Metric | Imperial |
| Manufacturer | TSUGAMI | |
| Model | HS207-5AX | |
| Machine Type | CNC Swiss Type Sliding Head Lathe | |
| Year of Manufacture | 2020 | |
| Bar Feeder | Bloader STG Bar Feeder | |
| Maximum Bar Capacity | Ø20 mm | Ø0.79 in |
| Back Spindle Y2 Axis | Available | Available |
| B-Axis | Available | Available |
| Number of Axes | 9 Axes | 9 Axes |
| Whirling Attachment | Not Available | Not Available |
| High Pressure Coolant Unit | 120 Bar | 1,740 PSI |
| Maximum Drilling Diameter | Ø10 mm | Ø0.39 in |
| Maximum Tapping Capacity | M10 | M10 |
| Deep Hole Drilling Diameter | Ø8 mm | Ø0.31 in |
| Maximum Back Spindle Chucking Diameter | Ø20 mm | Ø0.79 in |
| Maximum Back Spindle Drilling Diameter | Ø8 mm | Ø0.31 in |
| Maximum Back Spindle Tapping Capacity | M6 | M6 |
| Main Spindle Speed | 200 – 10,000 rpm | 200 – 10,000 rpm |
| Back Spindle Speed | 200 – 10,000 rpm | 200 – 10,000 rpm |
| Tool Spindle Speed | 200 – 10,000 rpm | 200 – 10,000 rpm |
| Total Tool Positions | 35 | 35 |
| Rapid Traverse Rate | 32 m/min | 1,259.8 in/min |
| Main Spindle Motor | 2.2 / 3.7 kW | 2.95 / 4.96 HP |
| Back Spindle Motor | 1.5 / 2.2 kW | 2.01 / 2.95 HP |
| Coolant Pump Power | 0.4 kW | 0.54 HP |
| Power Requirement | 14.3 kVA | 14.3 kVA |
| Machine Weight | 3,300 kg | 7,275 lbs |
| Machine Configuration | – CNC Swiss Type Sliding Head Lathe – Simultaneous 5-Axis Machining – B-Axis Tool Post – Back Spindle with Y2 Axis – High Pressure Coolant System – Precision Small Parts Machining | |
| Applications | Medical Components, Aerospace Parts, Automotive Components, Precision Connectors, Electronic Parts, Complex Small Diameter Machining | |
| Condition | Used | |
