Açıklama
X Axis | 2700 mm |
---|---|
Y Axis | 1200 mm |
Z Axis | 1000 mm |
CNC type | Heindenhain TNC 407 |
Table length | 3000 mm |
Table width | 1000 mm |
Max. spindle speed | 1800 rpm |
Spindle motor power | 26 kW |
Overhauled | no |
Length x width x height | 7357.0 × 3400.0 × 3107.0 |
Weight | 1550 kg |
Technical information
Longitudinal travel X-axe2700 mm
Cross travel Y-axe1200 mm
Travel Z-axe1000 mm
Dimensions clamping space- table3000 x 1000 mm
Power on spindle26 kW
Admission in millinghead (ISO)ISO 50
Max speedrange1800 rpm
ControlHeidenhain TNC 407
Power needed (KVA)68 kVa
Length 7357 mm
Depth 3400 mm
Height 3107 mm
Weight 15,5 ton
Cooling systemyes
Additional info

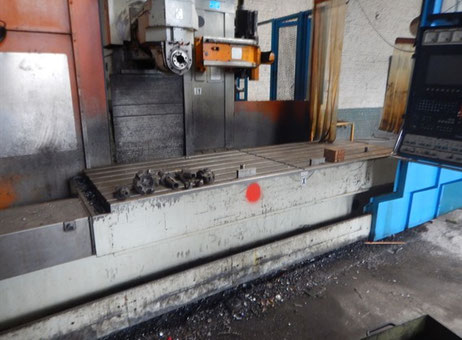

Type: LFU 3000
cooling through spindle
toolchanger with 30 positions

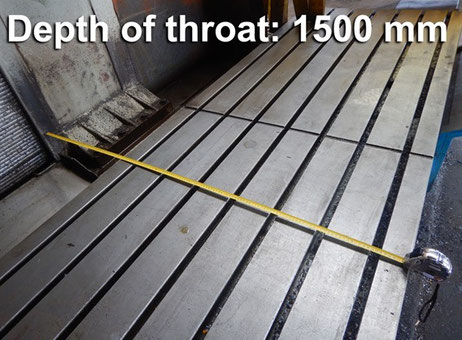

Depth of throat: 1500 mm
