Açıklama
Axis X | 1100 mm |
---|---|
Axis Y | 700 mm |
Axis Z | 750 mm |
Rotary table (4th axis) | yes |
Type of CNC | Philips CNC4460 |
Table length | 1400 mm |
Table width | 650 mm |
Max. part weight | 20000 kg |
Spindle taper | ISO 50 DIM69871 |
Max. spindle speed | 4000 rpm |
Spindle motor power | 22 kW |
Length x width x height | 3500.0 × 4000.0 × 3000.0 |
Weight | 16000 kg |

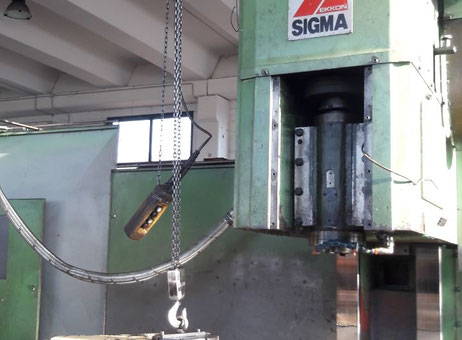

Used Sigma EK110 Machining center – vertical
Year: 1986
Axis X 1100mm
Axis Y 700mm
Axis Z 750mm
Type of CNC Philips CNC4460
