Description

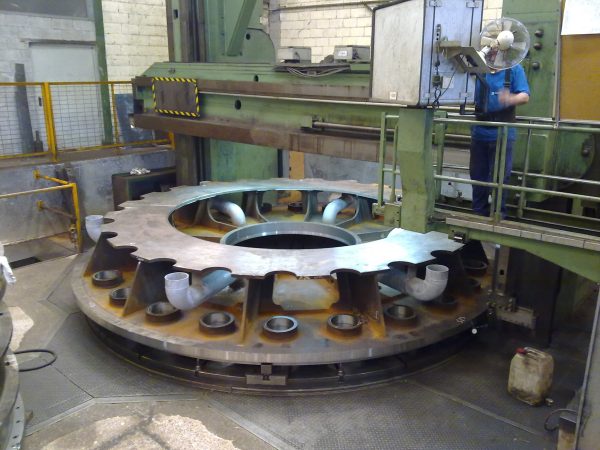

SCHIESS 18 VBM CNC Double Column Vertical Lathe 6 Meters – Retrofitted 2015
Turning Ø 6000 mm
Type of CNC FAGOR 8055
Z-axis 1500 mm
Max workpiece weight 100 kg
For sale the SCHIESS 18’ VBM vertical lathe, a robust machine with the oversized features characteristic of its time.
Manufactured in Germany and retrofitted in 2015,
it is ideal for machining large and heavy parts.
This machine is suitable for various sectors,
including the metallurgical industry,
general machining workshops, mechanical component manufacturing,
heavy structure construction,
energy generation.
Main Technical Features
Manufacturer: SCHIESS
Model: 18’ VBM
Chuck Diameter: 5500 mm
Maximum Turning Diameter: 6000 mm (width between columns)
Maximum Workpiece Height: 4400 mm
Movable Crossrail: 3000 mm travel
RAM (Z-axis): 1500 mm travel
Maximum Weight on Chuck: 100 tons
Rotation Speeds:
Range I: 1-8 rpm
Range II: 5-25 rpm
CNC Control: FAGOR 8055
Machine Condition: Operational and dismantled
