SAMSUNG SMT MCV 400 CNC Vertical Machining Center – Year 2018

Contact us for price

Category:

Description

SAMSUNG SMT MCV 400 CNC Vertical Machining Center – Year 2018
Make: SAMSUNG
Model: MCV-400
Serial No.: 17L200114
Installed: 04/18

SPECIFICATIONS

SAMSUNG SMT MCV 400 CNC Vertical Machining Center
 CAPACITY
X-Axis Travel
 30.31″
Y-Axis Travel
 16.92″
Z-Axis Travel
 20.08″
Table Size
 18.11″ x 36.22″
Table Loading Capacity
 1,102 lbs.
SPINDLE

Distance from table top to spindle nose
 5.91″ to 25.98″
Distance from column to spindle center
 18.75″
Spindle Taper
 CT-40
Spindle Speed
 12,000 rpm
AC Spindle Motor
 20 HP
Maximum Spindle Torque
 86.8 ft.-lbs.
AUTO TOOL CHANGER

Magazine Capacity
 30
Max. Tool Diameter
 3.15″
Max. Tool Length
 11.81″
Max. Tool Weight
 17.6 lbs
FEED RATE

Rapid traverse, X / Y
 1,417 ipm
Rapid traverse, Z
 1,181 ipm
Cutting feedrate
 590 ipm
GENERAL

Floor Space (without CC)
 93.3″ x 117.6″ x 104″
Machine Weight
 12,125 lbs

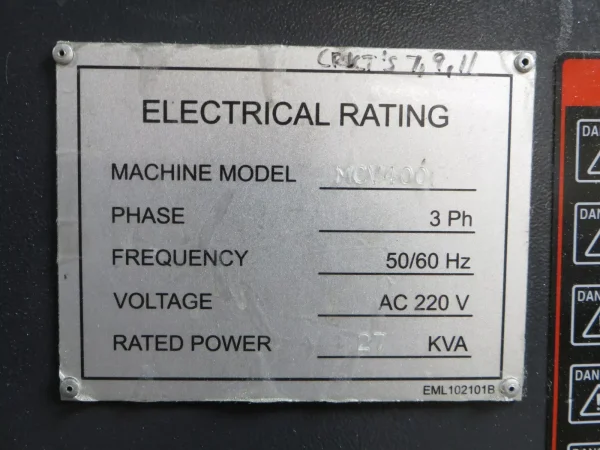

Power Required
 32 kVA
Voltage
 220V, 3-Phase

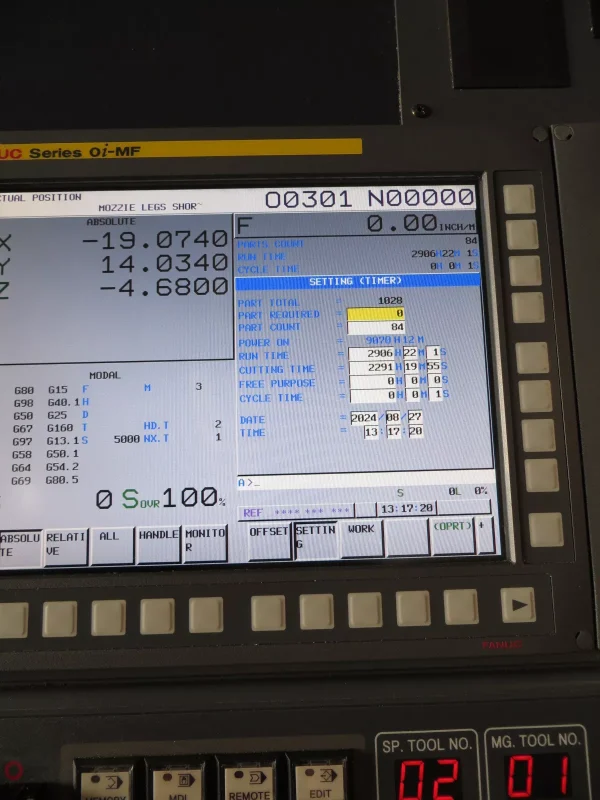

FANUC 0i-MF Control
32-Bit Multi-Processor Continuous-Path Control
10.4” Color TFT LCD Screen
PMCIA Flash Memory Card Interface
USB Port
Ethernet Port
RS232 Interface

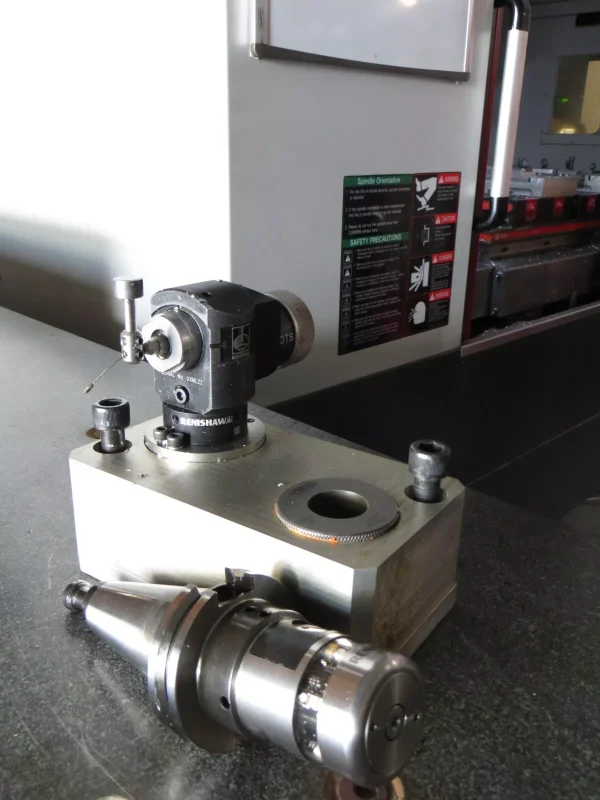

Renishaw Probe Ready Kit (OMI-2T)
Includes Chick Baseplate and vises
12,000 rpm with Spindle Cooling Unit
30 Tools Double Arm ATC
290 psi Through-Spindle Coolant System
Built-in Dual (Internal) Screw Conveyors – Rear Discharge
Chip Conveyor
Full Enclosed Splash Guard
Coolant Bed Flush
Rigid Tapping
4th Axis Prep Kit (wiring for connector box for cable only; no amplifier)
Big Plus Spindle
Manual Guide i
Z-Axis HP Upgrade with 4,000 lbs. Continuous Thrust
