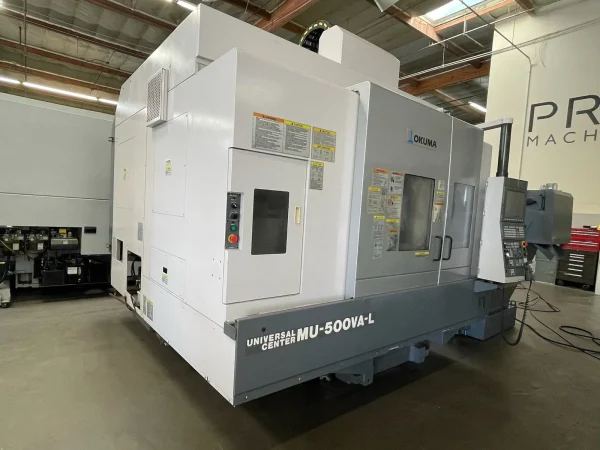

OKUMA MU-500VA-L CNC 5-Axis Vertical Center – Year 2008

Contact us for price

Category:

Description

OKUMA MU-500VA-L CNC 5-Axis Vertical Center – Year 2008

WITH TURNING + 5-AXIS MULTITASKING

MACHINING CENTER

Specifications:

X-AXIS SADDLE LEFT/RIGHT ……………………………. 49.21″

Y-AXIS PALLET FRONT/BACK ……………………………. 25.98″

Z-AXIS SPINDLE UP/DOWN ……………………………… 21.26″

A-AXIS DEG ………………………………………… +20 ~ -110

C-AXIS TURNING SPINDLE ……………………………… 1,000 RPM

MAX LOAD SIZE, WEIGHT …………………… 19.69″ X 28.74″, 1100 LBS

TABLE SURFACE TO SPINDLE NOSE ……………………….. 5″ TO 26.26″

TABLE SIZE ………………………………………… 19.69″ X 20.87″

FLOOR TO TABLE TOP …………………………………. 45.40″

SPINDLE SPEEDS …………………………………….. 8,000 RPM

TAPERED BORE ………………………………………. HSK-A63

BEARING DIAMETER …………………………………… 2.76″

RAPID TRAVERSE X/Y/Z ……………………………….. 1575/1260 IPM

RAPID TRAVERSE A/C DEG/MIN ………………………….. 18,000

CUTTING FEEDRATE X/Y/Z ……………………………… 1260 IPM

SPINDLE HORSEPOWER …………………………………. 30/25 HP

TURNING TABLE HORSEPOWER ……………………………. 20 HP

TOOL CAPACITY ……………………………………… 32 POSITIONS

MAX TOOL DIAMETER W/ADJACENT TOOL ……………………. 3.54″

MAX TOOL DIAMETER W/O ADJACENT TOOL ………………….. 4.92″

MAX TOOL LENGTH ……………………………………. 15.75″

MAX TOOL WEIGHT ……………………………………. 18 LBS

MAX TOOL MOMEMENT …………………… 5.7″ X 17.6 LB X 3.94″

MACHINE DIMENSIONS ………………….. 115.75″ X 132.56″ X 139.41″ TALL

MACHINE WEIGHT ……………………… 28,600 LBS

EQUIPPED WITH:

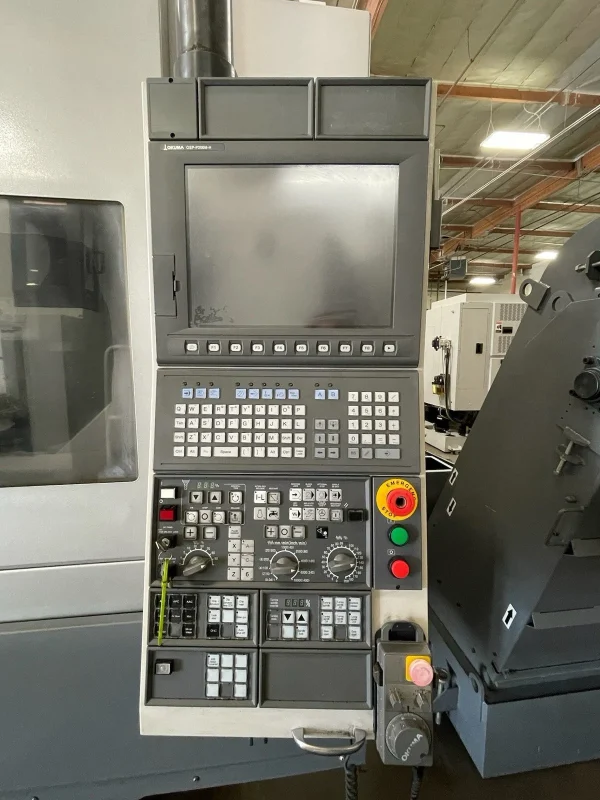

OKUMA OSP-P200M-H 5-AXIS CONTROL COLOR DISPLAY

L TURNING CUT, COLLISION AV.SY., TOOL LIFE MANAGEMENT

HELICAL CUT,3D TOOL OFFSET,SYNCHRO-TAP,G33 THREAD CUT,

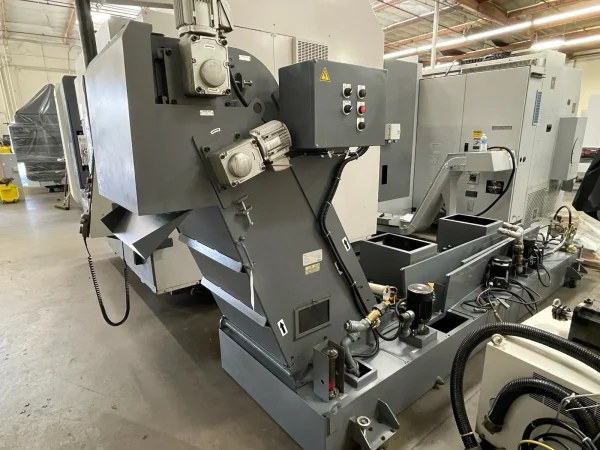

MOSNIC CHIP CONVEYOR, JIG HYDRA-UNIT,ANY-ANGLE CHNFR, B-AXIS INTERLOCK

OPT.PROBE, GAUGING/ZERO, MACHINE MANAGE,

HIGH-PRESSURE THROUGH SPINDLE COOLANT
