Description
| Metal length | 3050 mm |
|---|---|
| Power | 2500 W |
| Metal width | 1525 mm |
| Type | CO₂ |
| Option to cut tubes | no |
| Max thickness | 22 mm |
| CNC | no |
| Travel X | 3235 mm |
| Travel Y | 1545 mm |
| Travel Z | 100 mm |
| Max weight of the workpiece | 810 kg |
| Weight | 13900 kg |
| Worked hours | 22600 hours |
The machine was produced in 2007.
Number of hours worked 22 600.

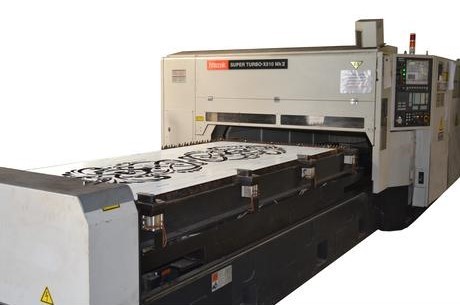

Technical parameters of the Mazak Super Turbo X 510 MK II laser:
CO2 laser – 2.5 kW
working space: 3050 x 1525 x 22 mm
axis shifts: X = 3235 x Y = 1545 x Z = 100 mm
maximum thickness of the processed sheets:
black steel = 22 mm;
stainless steel = 12 mm;
aluminum = 8 mm.
maximum table load: 810 kg
working table height: 900 mm
control: Mazatrol
sheet clamps: four clamps,
sheet lifter: 5 mm lifting understood as rotation
grate: 50 mm spacing
waste conveyor built into the machine
lighting: LED lamp
number of working tables: one
dimensions (length x width): 7400 x 2875 mm
machine weight: 13900 kg
The machine is in good condition, in constant use.
