GILDEMEISTER CTX gamma1250TC – 2009 Model

Learn Price

Category:

Description

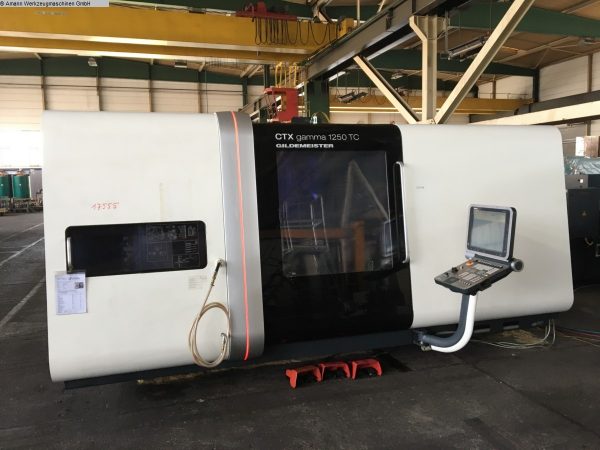

GILDEMEISTER CTX gamma1250TC – 2009 Model

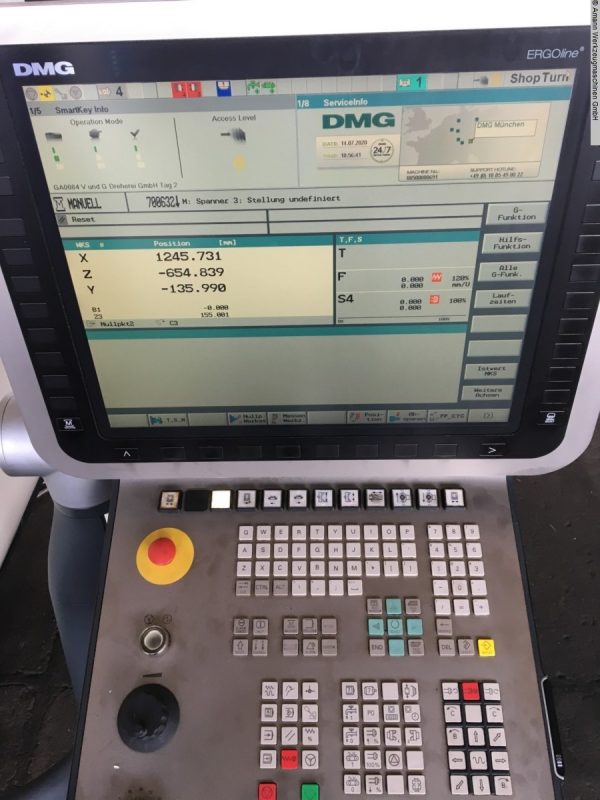

CNC turning and milling center with SIEMENS SIMUMERIK 840D Solution-Line,
main and counter spindle, 120-fold tool magazine HSK-63A, coolant system,
coolant through the spindle, chip conveyor.

turning diameter 630 mm
turning length 1250 mm
control SIN840D SL
spindle distance 1510 mm

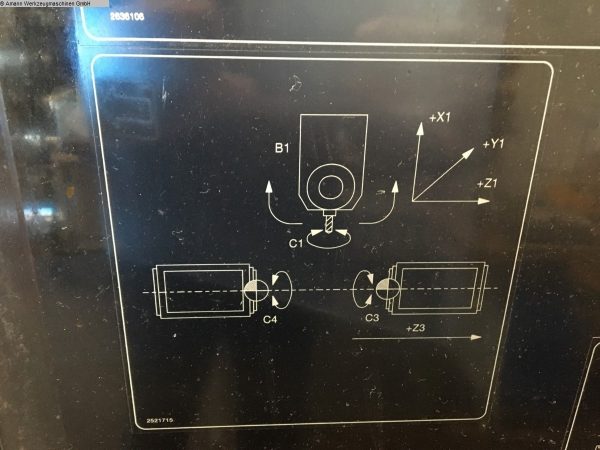

travel X1 axis 650 mm
travel Y1 axis 400 mm
travel Z1 axis 1300 mm
travel B1 axis 240 °
travel Z3 axis 1160 mm
Main Spindle
spindle turning speed – stepless 5 – 4000 U/min
power capacity at 100 % load 35,00 kW
power capacity at 40 % load 45,00 kW
spindle bore 118 mm
spindle diameter in front bearing 180 mm
max. torque on the spindle 600 / 770 Nm
C-axis 360 x 0,001 °
chucking diameter 500 mm
Opposed Spindle
spindle turning speed – stepless 5 – 4000 U/min
power capacity at 100 % load 35 kW
feeding force at 40 % ED 45 KW
toolpiece magazine: chain magazine 120 Stück
tool taper HSK-63A
weight of tools max. 12,00 kg
tool length – max. 400 mm
tool diameter 140 mm
feed X/Y/Z-axis 1 – 40000 mm/min
rapid traverse X/Y/Z 40,00 m/min
spindle bore 118 mm
external spindle dia. in forward position 180 mm
max. torque on the spindle 600 / 770
C-axis 360 x 0,001 °
chucking diameter 350 mm
1 – 12.000 1/min
total power requirement 90,00 kW
weight of the machine ca. 20,00 t
dimensions of the machine ca. 9,00 x 4,00 x H3,20 m
