GLEASON 116 Hypoid Spiral Bevel Gear Generator

Contact us for price

Categories: ,

Description

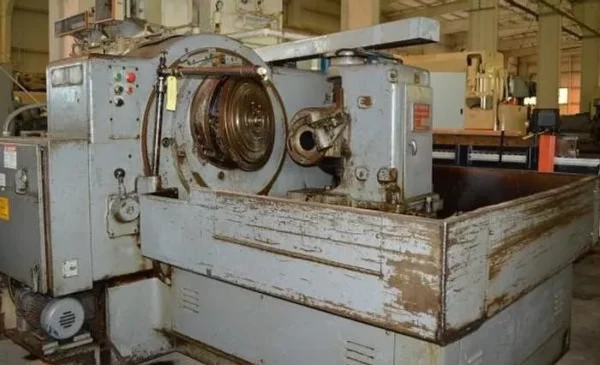

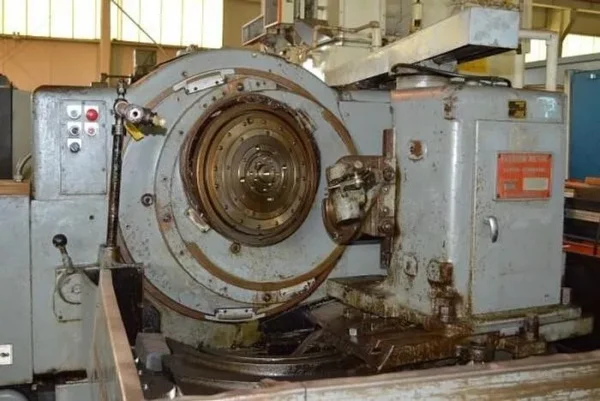

GLEASON 116 Hypoid Spiral Bevel Gear Generator

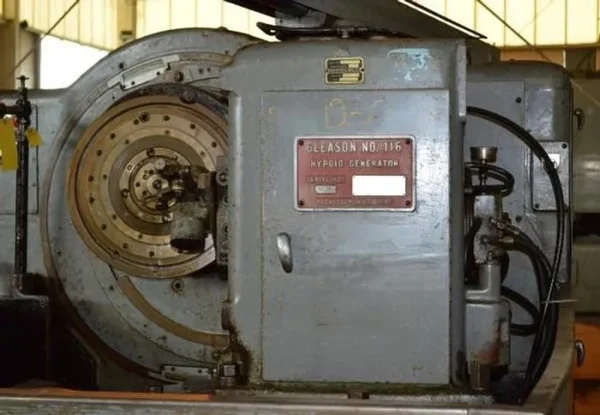

#116 GLEASON HYPOID SPIRAL BEVEL GEAR GENERATOR

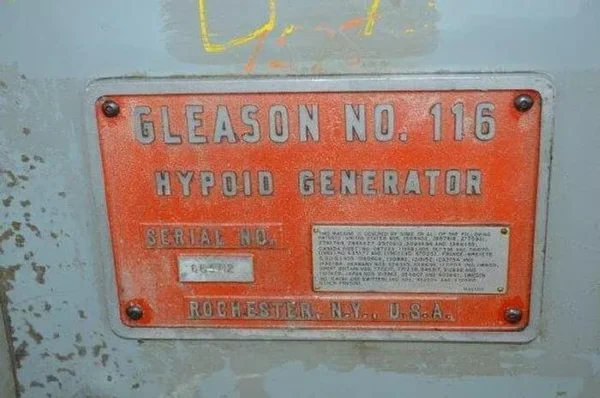

SERIAL NO. 663712, MODEL 116

NOTE: SUITABLE FOR CUTTING OF AUTOMOTIVE-TYPE
HYPOID AND SPIRAL BEVEL PINIONS UP TO 10:1 RATIO,
9″ (228.6MM) CONE DISTANCE, AND A MAXIMUM OF 2 DP
MODULE 12.7)

EQUIPMENT / FEATURES:
– HYDRAULIC DOUBLE-ACTING CHUCKING MECHANISM
LESS DRAW-IN BAR & NUT
– MODIFIED ROLL FEATURE
– FEED & ROLL CAM #R43210960
– STOCK DIVIDING GAUGE
– ASSORTED EXTRA CHANGE GEARS
– WORK SPINDLE ADAPTER (60 TAPER TO 39 TAPER STEP-DOWN)
– FULL COMPLEMENT OF ELECTRICS (MOTORS/CONTROLS)
– SELF CONTAINED HYDRAULIC SYSTEM
– SELF CONTAINED COOLANT SYSTEM
– ONE SINGLE SET-UP OF CHANGE GEARS FOR ONE OPERATION
AS LAST PERFORMED ON THE MACHINE.

PRINCIPAL SPECIFICATIONS:

Diametral Pitch (coarsest) 2 DP (12.7-module)

Maximum full depth 1″ (25.4mm)

Cone Distance, maximum (30-degree

Sprial Angle & 12″ Diameter Cutter 9″ (30mm)

Max pitch angle (shafts at 90-deg) 84 degrees 18′

Min pitch angle (shafts at 90-deg) 5 degrees 42′

Extreme Ratio (shafts at 90-deg) 10 to 1

Minimum ratio for pinions to

operate with “Formate” gears 2 to 1

Maximum gear pitch diameter:

(30-degree Spiral Angle)

10 to 1 ratio 18″ (460mm)

2 to 1 ratio 16″ (406mm)

1 to 1 ratio 12.75″ (324mm)

Max face width (depending on cutter) 2.75″ (78mm)

Max./Min. Number of Teeth 175 to 5

Work Spindle Taper Bore Dia.(large end) 3.9″ (100mm)

Taper (per ft.) 39/64″ (1:20)

Depth of Taper 6″ 150mm)

Diameter of hole through spindle 3.06″ (78mm)

Diameter of spindle nose 5.5″ (140mm)

Cutter Diameters Utilized 6″,7″,9″ & 12″

Cutter Diameters Utilized (150,190,230,305mm)

Workhead max offset above center 4.5″ (114mm)

Workhead max offset below center 4.5″ (114mm)

Maximum distance from machine center

to nose of spindle 13.5″ (343mm)

Minimum distance from machine center

to nose of spindle 2.5″ (63mm)

Cutter speeds 20 to 115 rpm

Feeds (seconds per tooth) 9 to 80 seconds

Feed motor 5 HP 1800 rpm

Hydraulic motor .75 HP 1800 rpm

Coolant motor .5 HP 3600 rpm

Floor space 75″ x 114″

Floor space (1905 x 2896mm)

Machine Net Weight 23,700 Lbs

Machine Net Weight (10,773 kGs)
