Açıklama
Turning Ø | 200 mm |
---|---|
Ø above the bed | 330 mm |
Length between centers | 450 mm |
Number of tools on turret | 12 |
Tailstock | no |
Bar feeder | no |
Length x width x height | 4470.0 × 2010.0 × 1750.0 |
Weight | 3500 kg |

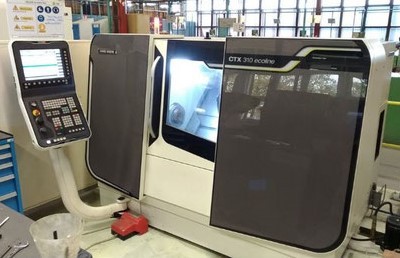

DMG MORI SEIKI CTX ECOLINE 310
Brand: DMG MORI SEIKI
Type: CTX Ecoline 310
CN: Siemens 840D
Model: 2012
Diameter on bench: 330 mm
Diameter on trolley: 260 mm
Distance between centers: 450 mm
Spindle passage: Ø 51 mm
Axis speed: 30/30 m / min
X: 160 mm
Z: 450 mm
Spindle: 5000 U / min
Turret: 12 tools
Tailstock stroke: 396 mm
