Description

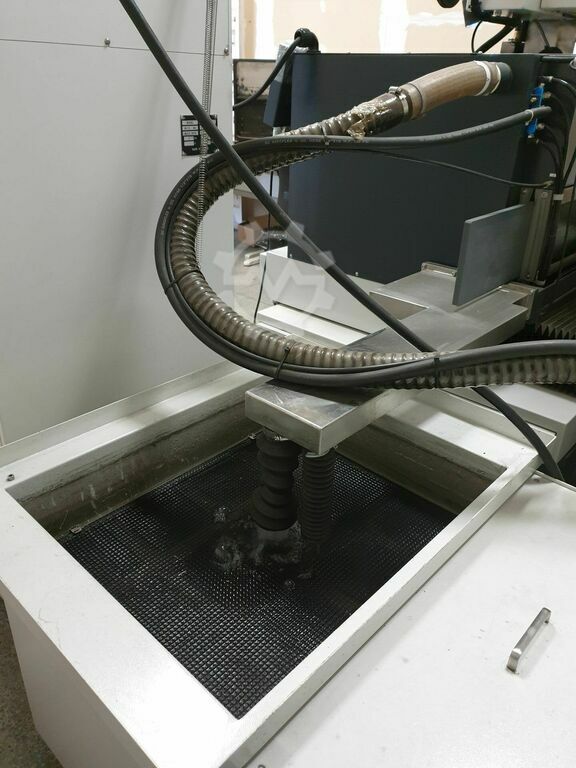

EDM wire cut machine (submerged type)
Model: CHMER GX 640L+
Set:
machine x 1 pc
generator x 1 pc

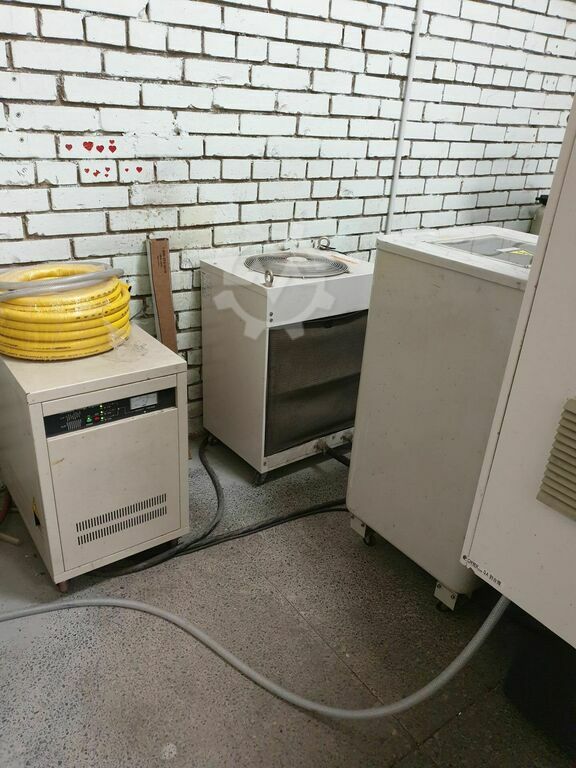

water filtering device x 1 pc
AWT threading device (instaled in the machine)
2 in 1 transformer +AVR x 1 pc
TECO water chiller x 1 pc
Spare parts, holders, nozzles, power feeders and etc..
Are axis holders, which will be used during transportation
Manufacturing year 2015
working hours:
This machine show just time when machine wa sunder the power, so to identify how much eaxctly generator time was now is bit different. But machine work max 2 year, many time it spend in shut down position.
So total hours machine shown for today: 11415 hours
Condition: perfect, under the tension.
Machine possible to check at any time, make test cut check condition. Meeting and inspection time must be set in advance 2-3 days before the meeting.
Tech parameters: chmer.com/products-view.php?id=34
Model Unit GX640L+ SUBMERGED
Axis Travel (XxYxZ) mm 600x400x300
Auxiliary Table Travel (UxV) mm 100×100
Max. Size of Workpiece mm/inch W910xD700xH295
Max. Weight of Workpiece kg 600kg
XY Feed Rate mm/min Max.1800(mm/min)
Axis Drive System – AC servo motor
Wire Diameter Range mm/inch ¢0.15~¢0.3
Max. Wire Feed Rate mm/sec,inch/sec 300 , 11.8
Wire Tension gf 300~2500
Taper Angle – ±21°/100(wide-angled nozzle,DA+DB=15mm)
Machine Weight kg 3595
Max. power consumption — 3 Phase 220 ±10% 11kva
Possible for extra charge to disconnect generator, machine and filtering device. It takes approx. 1-2 days. After will be very easy to connect back because all cables and hoses will be indicated with individual numbers and will need just to mount in to place the machine and connect №1 + №1, 2+2, …, 50 + 50 and etc.. This feature could cost around 500,0 Eur (extra)
Machine is in second flour, so to move down we have industrial elevator. But anyway will need to rent additional equipment to move from place to truck. It will be calculated extra. We can organize all process for extra cost which must be agreed and confirmed with the customer. Price will be calculated on request for the company which will order the machine. In other case we can provide just rough calculations of those costs.
