Açıklama
Axis X | 630 mm |
---|---|
Axis Y | 400 mm |
Axis Z | 425 mm |
Rotary table (4th axis) | no |
Type of CNC | Siemens Sinumerik |
Table length | 850 mm |
Table width | 470 mm |
Max. part weight | 250 kg |
Spindle taper | 40 ISO |
Max. spindle speed | 10500 rpm |
Spindle motor power | 18 kW |
Length x width x height | 3285.0 × 3340.0 × 2965.0 |
Weight | 5500 kg |
X – Travel 630 mm
Y – Travel 400 mm
Z – Travel 425 mm
Table Length 850 mm
Table Width 470 mm
Table load 250 Kg
Feed rate X-Axis 30.000 mm/min.
Feed rate Y-Axis 30.000 mm/min.
Feed rate Z-Axis 30.000 mm/min.
Spindle Taper 40 ISO/Bt/Mk
Power on spindle 18 kW
Speeds / ranges 10500 Rpm

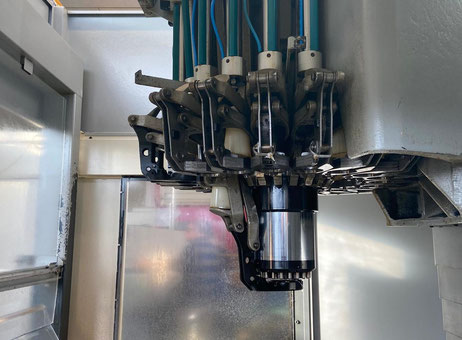

ATC / revolver 20
Number of controlled axis 3
Chip conveyor Yes
Coolant system Yes
