Açıklama
| Power | 4000 W |
|---|---|
| Option to cut tubes | no |
| Max thickness | 20 mm |
| CNC | no |
| Travel X | 3070 mm |
| Travel Y | 1550 mm |
| Travel Z | 200 mm |
| Hours under power | 29964 hours |
| State | good |

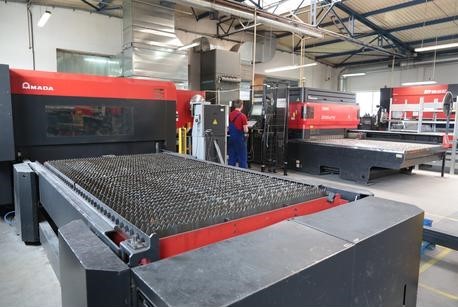

CO2 laser cutting machine (AMADA type FO-3015 MII NT CI) – 4000 Watt resonator w
standard equipment according to the offer:
travel range 3070 x 1550 x 200mm
maximum thickness of cut material:
Normal steel – 20mm
Alloy steel – 12mm
Aluminum – 10mm
displacement speeds of 113m / min
specially cast machine bed
pallet changing system
telescopic cabin – protection against radiation
laser head with capacitive sensor
programmable Z axis
diode laser for positioning
laser power control (DR)
Intelligent Cut Control – (ICC)
auto focus
recognition of the position of the sheet
Active Cut – rays telescope
Clean Cut
Alu Cut
Power Piercing
oil spray device
5 “and 7.5” lenses with replaceable cartridge
WACS system
suction system
cooling system
ROTO- CI – Profile cutting unit – installed in the FO-3015 laser cutter
Yearbook 2012
Number of hours 29964h
The price includes a two-day training in the use of the machine
