1) Overview

• Manufacturer: Hyundai WIA Corporation (formerly Hyundai Machine Tools), South Korea

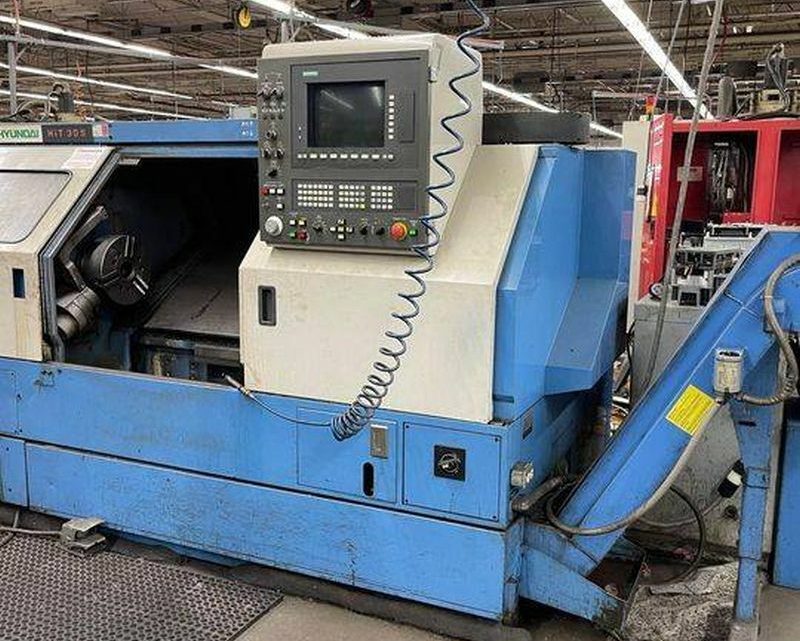

• Model: HiT 30S
• Machine Type: CNC Turning Center (2-axis slant bed lathe)
• Origin: South Korea
• Typical Applications: Precision machining of shafts, bushings, flanges, and medium-sized cylindrical parts in automotive and general engineering industries.
• Construction: One-piece 30°–45° slant bed casting, high-torque main spindle, and turret with servo indexing.
• Core Advantages: Excellent stability, Japanese Fanuc control reliability, and long-term mechanical durability from Hyundai’s heavy casting design.

---

2) Documentation & Pre-Purchase Checklist

Before purchase, request the following:

• Machine serial number & manufacturing year.
• Original specification sheet (spindle RPM, chuck size, travels, turret stations).
• CNC control system details (Fanuc 0i-TD, 18i-T, or Siemens 828D).
• Maintenance logs (spindle rebuild, turret coupling adjustment, lubrication checks).
• Geometry / inspection reports (ISO 230-2 or VDI/DGQ 3441).
• Power-on & cutting hours (displayed in control).
• Toolholders, tailstock details, and chip conveyor specs.
• Parameter backups (ladder + PMC data).

Avoid machines missing control backups or showing excessive wear near the tailstock and chuck guard — these often indicate crash or imbalance history.

---

3) Bed, Saddle & Turret Inspection

Bed & Casting

• Check slant bed surface for cracks, welds, or repainting — signs of prior collision repair.
• Verify machine leveling (no twist; check with precision level on X/Z slideways).
• Inspect chip evacuation system and coolant tray welds for corrosion.

Saddle & Carriage

• Move X and Z axes at low feed rates (100–500 mm/min): travel must feel smooth and silent.
• At 100% rapid traverse, no vibration or “jerk-stop” motion should occur.
• Inspect linear guideways or box ways for scoring, corrosion, or uneven lubrication.
• Confirm lubrication oil film is visible and continuous along guideway surfaces.

Turret

• Index through all 10–12 stations; each position should lock firmly.
• Measure turret indexing repeatability (< 0.005 mm typical).
• Listen for impact noise at lock-up — worn curvic coupling may cause misalignment.
• For live tooling versions, verify power rotation and torque output of driven tool motor.

---

4) Spindle & Chucking System

Spindle

• Measure runout at spindle nose (< 0.003 mm ideal, ≤ 0.005 mm acceptable).
• Inspect spindle taper for scratches or burnt marks.
• Run spindle at 500, 1500, 3000 rpm — listen for bearing whine or vibration.
• Check temperature rise after 20–30 minutes (should not exceed 10°C).
• Verify drawtube pressure (typically 25–30 bar hydraulic).

Chuck

• Inspect chuck jaws and body for cracks or worn teeth.
• Test hydraulic clamp/unclamp for full stroke and smooth motion.
• Confirm leak-free operation at rotary union and pressure fittings.

---

5) Tailstock / Sub-Spindle (if equipped)

• Inspect quill surface for scratches or scoring.
• Verify hydraulic advance and retract function.
• Measure tailstock center-to-spindle alignment (≤ 0.01 mm over 100 mm).
• Test live center rotation for noise or roughness.
• If a sub-spindle is installed, check transfer synchronization and alignment.

---

6) CNC Control & Electrical System

• Confirm control (Fanuc / Siemens) boots up without alarms.
• Test handwheel, jog, cycle start, and feed hold operations.
• Review alarm history log for servo or spindle faults.
• Open electrical cabinet:
  • Check fan filters, wiring condition, and cooling fan noise.
  • Verify battery voltage and replacement date.
• Observe servo diagnostics for overcurrent or encoder drift.
• Confirm RS-232 / Ethernet communications function.

---

7) Hydraulic, Pneumatic & Lubrication Systems

• Inspect hydraulic tank and pump — no foaming or unusual noise.
• Check pressure stability (30–45 bar typical for chuck).
• Verify lubrication pump cycles every 20–30 min (manual override test).
• Examine pneumatic regulators for air leaks (6–7 bar steady).
• Inspect hydraulic hoses and seals for oil seepage.

---

8) Geometric & Accuracy Verification

Test Parameter	Method	Acceptable Value
X-axis backlash	Dial indicator	≤ 0.01 mm
Z-axis backlash	Dial indicator	≤ 0.015 mm
Spindle-to-tailstock alignment	Test bar sweep	≤ 0.01 mm / 100 mm
Turret repeatability	Dial indicator	≤ 0.005 mm
Spindle runout	Test bar	≤ 0.003 mm
Positioning accuracy	Laser / Ballbar	±0.005 mm
Repeatability	Laser	±0.003 mm

---

9) Functional Performance Tests

• Dry Run Test: Perform full travel of all axes — ensure no axis overrun alarms.
• Ballbar Test: Circular deviation ≤ 20 µm indicates excellent servo condition.
• Cutting Test:
  • Material: Mild steel bar Ø50 mm.
  • Operation: Facing, OD turning, and threading.
  • Measure:
    • Taper error ≤ 0.01 mm / 100 mm.
    • Surface finish Ra ≤ 1.6 µm.
    • Dimensional repeatability ≤ ±0.005 mm.

---

10) Typical Wear & Service Items

Component	Normal Service Life	Signs of Wear
Spindle Bearings	12,000–20,000 h	Noise, heat, vibration
Ball Screws	15,000–25,000 h	Backlash, axis drift
Curvic Coupling	20,000 h+	Indexing error
Hydraulic Seals	2–3 years	Pressure loss
Way Covers	5,000 h	Oil leak, tearing
Servo Fans / Filters	2 years	Dust, alarm 401/414
Coolant Pump	8,000 h	Cavitation noise

---

11) Acceptance & Run-Off Checklist

Inspection Point	Target	Result
Spindle runout	≤ 0.003 mm
X-axis backlash	≤ 0.01 mm
Z-axis backlash	≤ 0.015 mm
Turret index repeatability	≤ 0.005 mm
Spindle temp rise	≤ 10°C
Surface finish	Ra ≤ 1.6 µm
Hydraulic leakage	None
Alarms	None

---

12) Common Issues in Used Hyundai HiT 30S Machines

• Spindle bearing noise due to age or long coolant exposure.
• Turret alignment errors from minor crashes.
• Hydraulic chuck leaks at rotary union.
• X-axis servo tuning drift after long idle periods.
• Coolant system corrosion if not flushed regularly.
• Tailstock misalignment caused by base settling.

---

13) Summary Evaluation Table

Category	Excellent	Acceptable
Bed Casting	Original, clean, no welds	Minor repaint
Spindle	<0.003 mm runout, silent	Light hum
Axis Backlash	<0.01 mm	<0.02 mm
Turret Locking	Firm, precise	Slight delay
Control	Stable, error-free	Minor servo alarm history
Hydraulics	No leaks	Minor oil mist
Accuracy	ISO compliant	Slight deviation

---

14) Final Verdict

The Hyundai HiT 30S CNC Lathe, proudly made in South Korea, is a proven workhorse in the turning industry — offering rigidity, accuracy, and durability typical of Hyundai WIA’s engineering.

A well-maintained unit offers:

• Stable performance for continuous production
• High spindle reliability and torque
• Compact footprint with heavy-duty cast base
• Long-term spare parts availability through Hyundai WIA global network

When inspected and verified according to this checklist, a used HiT 30S remains one of the most dependable and cost-effective Korean CNC lathes on the secondhand market.
