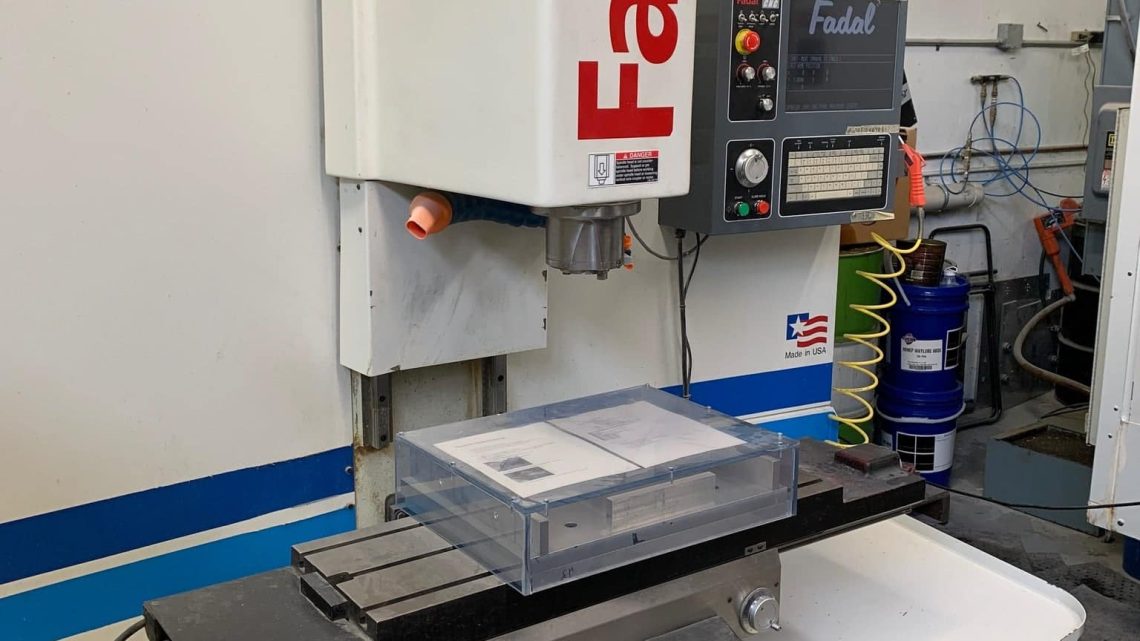

Below is a Technical Evaluation Guide — in your CNCBUL “Smart Buyer’s Guide” style — for assessing a used, secondhand, pre-owned, or surplus Fadal TRM CNC vertical machining (toolroom) mill (USA built).

This is what a savvy engineer, buyer, or inspector should check to distinguish a high-quality TRM from one with hidden issues.

---

1. Machine Overview & Key Specs (for Reference)

Before you inspect, gather or confirm baseline specs so you know what tolerance ranges are realistic.

Typical TRM specs (varies by submodel / options):

• The TRM is a toolroom vertical mill variant — often simpler than full production VMCs.
• Example listing: 2005 TRM with travels 30″ × 14″ × 14″, 6,000 rpm spindle, 5 HP motor, CAT-40 taper.
• Another listing: 30″ X, 14″ Y, 14″ Z, 2,000 model, 4,000 rpm, CAT-40, 200 ipm rapids, etc.
• Because the TRM is relatively rare compared to other Fadal lines, parts & support may be more limited — this is a key risk others have noted.

So when you inspect, your expectations should align with a toolroom class machine (not heavy-duty hogging mill), and you must pay extra attention to wear, control vintage, and parts availability.

---

2. Documentation & Pre-Purchase Records

Before visiting the site, request as many of the following as possible:

Document	Why It Matters
Serial number & build year	To verify matching panels, firmware, parts availability
Original spec sheet / options list	To know what features should be there (spindle speed, ATC or none, coolant, etc.)
Maintenance / repair logs	To see whether spindle rebuilds, bearing changes, alignments were done
Geometry / calibration certificates	To confirm it’s been maintained within tolerance
CNC parameter / backup files	Many TRM units use older Fadal CNCs (88HS, MP32, 16M etc.) — losing this is a big risk
Spare parts listing (spindles, guides, belts)	To understand what is replaceable and accessible

If the seller cannot provide these, demand that you be allowed additional testing onsite (test cuts, ballbar, etc.) or reduce the asking price accordingly.

---

3. Structural & Mechanical Inspection

Frame, Base & Castings

• Visually inspect for cracks, weld repairs, or filler especially near high-stress zones: column base, saddle mounting, table ways.
• Check for levelness & twist: place a precision straightedge or granite ruler across the table and see if all contact is uniform.
• Check mounting feet/leveling pads — they should be intact, not over-worn, and properly shimmed.

Ways, Slides & Lubrication

• Manually or with servo jog, traverse each axis slowly — listen/feel for roughness, binding, or “sticky” spots.
• Check for consistent oil film on ways; lack of film or dry patches may indicate lubrication issues.
• Check oil / grease lines, check for blocked or damaged fittings, leaks.
• For box-way or dovetail slides (depending on TRM variant), check for side play or vertical play by putting a feeler gauge or indicator.

Ball Screws, Nuts & Couplings

• If TRM uses ball screws, check backlash by jogging in small increments and watching reversal error.
• Inspect end support bearings for noise or play.
• Check couplings for misalignment, wear, or looseness.

Spindle & Head

• Check spindle taper and bore for wear, rust, scoring, or damage.
• Check runout at spindle nose using a test bar — 0.003 mm or better is excellent; 0.005 mm tolerable for used toolroom class.
• Run spindle at several speeds (low, mid, high if capable) to listen for bearing hum or vibration.
• Let the spindle run warm for 15–20 minutes and monitor temperature rise — it should be modest (not extremely hot).
• If there is a spindle brake or clutch, test its operation (engage/disengage).
• If the TRM has an ATC (some variants might, though many are simpler), cycle the tool changer multiple times and watch for mis-picks, delays, or mechanical noise.

---

4. Control, CNC & Electronics

Because TRM units often use aged Fadal CNCs (e.g., 88HS, MP32), the control side is a high-risk area.

• Boot the machine: confirm that control starts clean (no error alarms at startup).
• Load and run CNC parameters; check whether the operator interface is responsive and usable.
• Jog each axis (feed mode) from the control panel — check for smooth motion, no stuttering or lag.
• Check the controller’s alarm / fault history — look for repeated axis drive errors, spindle alarms, or encoder faults.
• Inspect the control cabinet: wires should be neat, routing logical, no signs of burnt wires or overheating.
• Check cooling fans and filters, power supplies, voltage stability, and ground connections.
• Confirm you can back up or export the CNC program files, configuration, macro variables — losing these in the future is a big headache.
• If the control uses an HDD, floppy, or RAM battery, consider the risk of failure or data loss — ask for spare memory media or backups.

Anecdotal user feedback warns that some TRM units had control reliability issues and parts scarcity in later years.

---

5. Geometry, Accuracy & Performance Testing

You must do real tests to gauge how well the machine still performs.

Static / Geometric Tests

Test	Method	Acceptable Deviation (used)
Axis backlash (X, Y, Z)	Dial indicator with reversal	≤ 0.01–0.02 mm
Squareness (X to Y, X to Z)	Sweep test with indicator, use granite square	≤ 0.02 mm over full travel
Positioning accuracy	Ballbar or laser over travel	±0.01 mm or better (if factory allowed)
Repeatability	Laser retrace or repeat moves	± 0.005 mm to ± 0.01 mm
Spindle runout	Test bar at different lengths	≤ 0.005 mm ideal
Thermal drift	Over 30–60 min test cuts	≤ 0.01 mm shift

Functional / Cutting Tests

• Perform a test cut in mild steel or aluminum: a pocket, face, and traverse pass.
• Measure dimensional accuracy, flatness, and surface finish (target Ra ~ 1.6 µm or better, if spindle and hardness allow).
• Run multiple cycles (10–20) of the same cut path and check for drift or deviation across cycles.
• Test at maximum programmed feed/speed to see if the machine maintains synchrony without lost steps or alarms.
• If the machine has a spindle load meter or current readouts, monitor current under load versus idle — large deviations or spikes suggest mechanical binding or electrical stress.

---

6. Wear Indicators & Risk Areas

These components typically tell the real story of the machine’s health.

• Spindle bearing wear (noise, heat, rising runout).
• Ball screw / leadscrew nut wear (excess backlash or binding).
• Way cover seals / bellows — torn covers allow chips into slides, accelerating damage.
• Electrical connectors, wiring insulation — aged cables are common failure points.
• Control memory / battery / hard drive — data loss risk.
• Lubrication systems (pumps, filters) — clogged or failing systems cause dry spots.
• Tool changer arms, grippers, cams (if ATC is present) — wear in mechanical parts.
• Motor and drive cooling fans — worn or failing fans allow overheating.

Also, many TRM owners have reported that replacement parts (especially for TRM-specific controls or parts) became harder to source later.

---

7. Acceptance / Run-off Checklist (for contract or inspection)

You can use this as an acceptance/test list when you inspect or before finalizing purchase.

Check / Test	Pass Criteria
Control boots clean with no startup alarms	✓
Each axis jogs smoothly in manual mode	✓
Axis backlash within acceptable limit	✓
Spindle runout within tolerance	✓
Test cuts produce correct dimensions & finish	✓
Repeatability over cycles within tolerance	✓
ATC (if present) cycles reliably without errors	✓
No oil / coolant leaks around slides, spindles	✓
No excessive vibration or noise at full load	✓
All safety interlocks, limit switches, E-stop operate	✓
CNC data export / backup possible	✓

Use this checklist to negotiate repairs, spare parts inclusion, or price adjustments if any test fails.

---

8. Common Weaknesses & Buyer Cautions

When evaluating TRM machines, beware of:

• Control obsolescence or missing backups — the Fadal TRM line was thinner in parts support compared to more common lines.
• Z-axis brake or motor issues (some users reported z motor “wandering” or brake faults).
• Torque / power limitations: the TRM is more of a toolroom style mill, not for heavy stock removal. Don’t expect VMC-level robustness.
• Lack of flood coolant or weak coolant systems (some owners lament missing coolant systems).
• Spindle or bearing degradation not evident under no-load conditions — load tests can reveal core issues.
• Wiring, connectors, or PC / drive card failures from age, heat, or corrosion.

In short: the TRM can be an excellent machine for light-to-moderate machining if well maintained, but requires extra diligence.

---

9. Summary Evaluation Table

Category	Excellent Condition	Acceptable / Usable Condition
Structural & Castings	No cracks, no welds, flat & true	Minor cosmetic repairs, within tolerance
Axes & Guides	Smooth, minimal backlash	Slight backlash < 0.02 mm
Spindle	< 0.003 mm runout, silent	< 0.005 mm with slight hum
Control / CNC	Fully backed-up, no errors	Minor warning history, stable operation
Test Cuts	Dimensions accurate, Ra ≤ 1.6 µm	Slight deviation, still usable
Repeatability	< ±0.005 mm	< ±0.01 mm
ATC / Tool Handling (if any)	Perfect cycles, no misses	Occasional delay, but functional
Wear Items	Minimal	Consumables moderate wear, but replaceable
