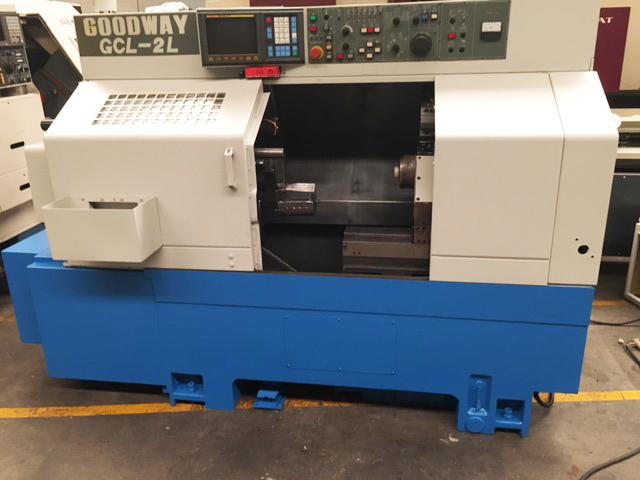

If you’re considering purchasing a **pre-owned / surplus GCL‑2L from Goodway (Taiwan) for your second-hand machinery online platform, here’s a detailed inspection-to-installation checklist. It covers mechanical, electrical, process, logistics and installation considerations so you make an informed purchase.

---

1. Machine Specification & Fit for Purpose

Before you commit, verify the machine really meets your application requirements.

Key spec highlights (for GCL-2 Series / GCL-2L):

• Max swing over bed ≈ Ø 400 mm.
• Max turning diameter ≈ Ø 230 mm on many units.
• Max turning length up to ~600 mm in some versions.
• Spindle speed up to ~4,500 rpm.
• Spindle motor ~11 kW continuous / ~15 kW 30 min in some models.
• Machine weight ~3,500 kg.

Verify with seller:

• Confirm the control system (e.g., FANUC Oi-TF or Mitsubishi).
• Check the turret station count (8 or 12 positions) and whether live tooling is present.
• Ask for the machine’s working envelope / travel in X and Z axes (e.g., X ≈ 125 mm, Z ≈ 620 mm in some specs).
• Determine what’s included: chuck size (often 8″), tailstock, bar‐capacity (~51-52 mm) etc.
• Confirm the origin: Goodway Machine Corp., Taichung, Taiwan.

Tip: Ensure the machine’s capacity matches your workload (workpiece size, material, cycle demands). Over-spec machine may cost more in freight/installation; under-spec means compromises.

---

2. Condition Inspection – Mechanical & Structural

When you or a trusted inspector visit the machine (or ask for detailed photos/videos), check the following items:

a) Bed, ways & machine structure

• Goodway emphasises heavy one-piece cast bed of FC35 Meehanite, wide hardened & ground box ways.
• Check for excessive wear, scoring, gouges, repair welds along the bed ways or saddle.
• Inspect for alignment of the bed (sagging, droop). Use a straight edge or test bar.
• Check for rust/corrosion on ways, especially if machine has been idle or in poor environment.

b) Spindle & chuck

• Verify spindle run-out: insert a precision bar, measure with dial indicator.
• Confirm spindle bearing noise: listen while running, feel for vibration.
• Inspect chuck condition (jaws, mounting face). Check for cracks or distortion.
• Check spindle nose (should match A2-6 per spec).

c) Turret / tooling

• Check turret indexing: does it index smoothly and precisely? Any delays or chatter?
• Look for hydraulic leaks around turret clamping.
• Confirm tool holders, turret disk surface, and coupling condition (Goodway notes large diameter curvic couplings for rigidity).

d) Slideways, ball screws (if applicable), and axis motion

• Move the axes manually (or with power): feel for backlash, stickiness, uneven motion.
• Check rapid traverse rates (for GCL-2L some sources show ~20 m/min).
• Inspect lubrication: are ways being properly lubricated, any signs of neglected maintenance?

e) Tailstock (if present)

• If tailstock is included, verify movement, quill locking, and whether it uses MT#4 live center (some spec lists).

f) Accessory systems

• Chip conveyor, coolant system, guarding – check for wear, missing parts or damage.
• Bar-feed or bar-capacity: confirm if present and condition. Some listings mention bar-capacity ~51-52 mm.

---

3. Electrical / Control / Software Verification

Control panel & CNC controller

• Confirm model of controller (e.g., FANUC Oi-TF, Oi-TD, Mitsubishi). Ensure you have operator manuals. Goodway provides operation manual for GCL-2/L series.
• Check hours of operation (if CNC tracks) and maintenance history.
• Power supply: ensure machine is compatible with your local voltage/frequency or check transformer requirements.
• Confirm all safety interlocks and emergency stops are functioning.

Drives, motors, electrical cabinet

• Open electrical cabinet: check for clean wiring, no burnt components, no excessively dusty/dirty environment.
• Ask for recent replacement of drives, capacitors, or bearing motors if available.
• Measure insulation resistance on motor windings (if possible).
• Confirm coolant pump, heater, and all auxiliary electrical systems work.

Software / backup

• Ensure you get backups of existing programs, offsets, offsets table, tool table.
• If any custom macros or fanuc/proprietary codes used, confirm understanding or documentation.
• Check if the machine has any limit warnings, alarms history.

---

4. Provenance, Usage & Maintenance History

• Ask for machine log: when and where it was used, how many shifts, what materials processed.
• Check for rebuilds: any bed re-grinding, replacement of ways, spindle rebuilds.
• Inspect any modifications or retrofits and ensure they meet safety/compliance standards.
• If machine was idle for long periods, ask for reason and what storage/maintenance was done.

---

5. Transport, Installation & Commissioning Preparation

Transport considerations

• Weight ~3.5 t (≈ 3500-kg) for many GCL-2L units. Confirm with spec sheet.
• Check mounting footprint & floor loading at your site.
• Arrange heavy-duty rigging and proper crane/transport path.
• Ensure machine is sufficiently secured, fluids drained or sealed for transport.

Installation at your site

• Floor level: ensure foundation is flat and within tolerance; consider leveling screws or grout.
• Power supply: check incoming voltage, phase, frequency; supply transformer or converter if necessary.
• Cooling & coolant: fresh coolant, proper coolant pump, condition of tanks and piping.
• Alignment: once installed, perform alignment on saddle to spindle centre, tailstock alignment (if present).
• Test cycle: run no-load and then test cut to verify accuracy, vibrations, chatter.

Commissioning

• Warm-up: run axes, spindle under load gradually to stabilize thermal conditions.
• Test part: turn a test piece and measure critical dimensions, surface finish, repeatability.
• Chip removal/coolant flow: confirm chip disposal, coolant pressure and filtration.
• Operator training: ensure your team knows control functions, maintenance schedule.

---

6. Documentation & Compliance

• Ensure you receive machine manuals (maintenance, operation, parts list). Goodway publishes a manual for GCL-2/L series.
• Check for CE or other local compliance markings (especially relevant if used machine came from EU).
• If you intend to resell via your platform (CNCBUL), gather full spec sheet, images, usage hours, condition report — key for listing transparency.

---

7. Red Flags & Deal-Killer Items

• Excessively worn bed ways/slides that cannot be readily re-conditioned.
• Spindle bearing noise or high run-out (would incur expensive rebuild).
• Obsolete control with no available spare parts or support.
• Machine being used as “floor filler” for many years (idle) without maintenance.
• Evidence of over-heating, coolant leakage into bearings, or electrical damage.
• Missing key accessories (tooling, coolant tank, chip conveyor) that would add cost.

---

8. Pre-Purchase Checklist Summary

• Match capacity (swing, turning diameter/length, bar capacity) to your part requirements
• Verify axis travels, rapid rates, turret configuration
• Inspect bed/ways, spindle, turret, slide motion
• Open electrical cabinet & check drives/motors, control panel
• Check hours, maintenance history, origin and usage
• Budget for transport, installation, commissioning, possible re-conditioning
• Secure full documentation and compliance
• Run a test cut prior to final purchase if possible
