1. Specification & Fit for Your Application

Before diving into condition, ensure this machine’s specs align with your manufacturing needs.

What you must check:

• Confirm exact model variant: “32 CSL” maybe convertible, may include Y-axis, B‐axis, sub-spindle. For example spec sheet shows max machining diameter ≈ 35 mm, max machining length per chucking ≈ 268 mm for 32 CSL.
• What tooling configuration is fitted: how many OD tools, ID tools, driven tools, live tools, back working tools etc. For example one listing: “OD Tooling … 6, ID … 2, cross working driven tool … 6” for 32 CSL.
• What spindle and sub-spindle capacities: e.g., spindle hole diameter about 33–38 mm in some specs; back spindle hole diameter similar.
• Speed ranges: shown 200-6000 rpm or up to 8000 rpm in some units.
• Does the machine include bar-feed or guide-bushing mode (Swiss-type often does) if needed for your parts? Example listing mentions “bar capacity 1.25″” for one unit.
• Does your part size, length, complexity (ID holes, live tooling, back work) match what the machine can handle? Definitively confirm dimensions, stock capacity, tooling compatibility.

Key questions to ask seller:

• What is the exact serial number, year of manufacture for this specific machine?
• What software/control version is installed (e.g., Mitsubishi M60/M80, Fanuc)? Example listings: Mitsubishi M60, Mits ctrl 6000 rpm.
• What tooling and axis options are installed (Y-axis, B-axis, sub-spindle, live tooling, back-working)?
• What is the actual bar capacity (if using bar feed) and what mode (guide-bushing or non-guide) was used?
• Are there parts or accessories missing (bar feeder, chip conveyor, coolant unit, live tool holders)?
• Has the machine been used heavily (high spindle hours, lights‐out production) or lightly?
• Is the control software/licensing supported and upgradeable (important for future proofing)?

---

2. On-Site Inspection of Condition

Once the machine passes spec-fit, actual condition is key for used purchase.

Mechanical / Structural

• Inspect the bed and guideways: check for wear, scratch marks, contamination. Swiss-type machines are precision machines; wear on slideways or guide bushing mechanisms affects accuracy.
• Check main spindle for run-out, noise, vibration, condition of holes and collets.
• Inspect sub-spindle (if present): check synchronization, chucking, axial alignment, run-out. Example listing shows sub-spindle for Diamond 32CSL.
• Examine all axes (X1/Z1, X2/Z2, Y axis if present): smooth travel, no jerk/stick, observe rapid traverse speeds if possible. Some specs show X/Z rapid traverse up to ~30 m/min.
• Inspect tooling holders: OD/ID tool holders, live tooling spindles, back working stations. Worn tooling or missing tooling means additional cost.
• Look for signs of abuse: heavy chip build-up, coolant contamination, rust spots, poor housekeeping — all can signify neglected machine.
• Check load on chip conveyor, coolant system, bar-feed interface: even if main machining unit looks good, auxiliary systems matter.

Control & Software

• Power the machine: verify control boots, no error alarms, HMI (Human-Machine Interface) is responsive.
• Check control version: For Diamond 32CSL there are mentions of Mitsubishi M60, Fanuc 0i-TF Plus options.
• Verify if any custom modifications or obsolete components (old PLCs, old drives) that may be costly/hard to maintain.
• Confirm tool magazine (if automatic) or turret status and that live tooling/spindles (if present) operate correctly.

Documentation & History

• Request maintenance logs, service records, spindle hours, tooling change logs.
• Ask for any major repairs or rebuilds — spindle replacement, re-grinding guideways, major axis overhaul.
• Manuals, parts lists, wiring diagrams: these are important for long-term support.
• Spare-parts availability: older or less common models may have hard‐to-get parts.

Test Operation

• If possible, have the machine perform a test run using your material or a similar part: check surface finish, dimensional accuracy, repeatability.
• Observe actual live tooling (if present): woodworking Swiss materials may require this.
• Check part catch cycle, bar loading/unloading (if bar-feed).
• Monitor chip flow, coolant flow, machine stability under production mode.

Infrastructure & Utilities

• Confirm power requirements: voltage, phase, amp draw (e.g., one spec shows machine weight ~3988 kg for 32CSL and dimensions ~2480×1280×1780 mm.
• Check bar feeder system and compatibility (if included) – if not included you may need to purchase separately.
• Floor and foundation: ensure machine was on proper foundation originally; for used relocation ensure your site meets requirements.
• Ambient conditions: Swiss-type machines are precision devices — temperature fluctuations, vibrations from surrounding heavy machines can degrade accuracy.

---

3. Pre-Installation & Commissioning Planning

Assuming you choose to purchase, you must plan installation carefully to avoid hidden costs.

Environment & Foundation

• Ensure your facility can handle machine footprint and weight. Example dimension: ~2190 × 1530 × 1800 mm for one 32CSL variant.
• Check utility needs: Are there adequate power lines, air supply, coolant, chip disposal, bar loader rail, mist collector etc.
• Consider relocation: dismantle, transport, re-leveling, anchoring. Swiss-type machines are sensitive to alignment.

Transport, Setup & Safety

• Plan for rigging and transport: check machine weight, any bar-feed or large auxiliary gear attached. Example listing shows weight ~8,800 lbs (~4,000 kg) for one unit.
• On arrival: check machine for shipping damage, level machine, connect utilities, prime lubrication, purge coolant.
• Verify all guards, safety interlocks, chip conveyor, mist collector are working.

Commissioning

• Perform no‐load test runs: exercise axes across full travel, index tool holders/turrets, verify spindle runs.
• Calibration: check spindle run-out, axis accuracy, tool offsets, sub-spindle alignment (if present).
• Production test: run your production part(s), monitor cycle time, finish quality, dimension results.
• Operator training: Ensure operators understand this specific machine (Swiss-type, bar feeding, multi‐axis) and maintenance routines.
• Set up maintenance schedule: baseline metrics, tool change schedule, drink chips/coolant, etc.

---

4. Risk Points & Pitfalls to Watch

• Because Swiss-type lathes are intricate, wear on key components (spindles, guide bushing, axes) can significantly degrade performance.
• If the bar feeder is missing or obsolete, adding one may be costly.
• Control/automation obsolescence: older controls may be difficult or expensive to support, especially for Swiss machines.
• Missing accessories: Live tooling, B/A axes, sub-spindle, bar feeder, chip conveyor, mist collector – missing items reduce value. Example listing mentions many accessories.
• Relocation and setup costs: With used Swiss-type machines, alignment and foundation are critical—if overlooked, machine may not perform to spec.
• Spare‐parts: For less common models or older machines, parts may become hard to source or expensive.
• Environment: If machine was previously in harsh environment (dirty, high vibration, poor coolant maintenance) its internal condition may be worse than looks.
• Specification mismatch: If your parts require more capability (live tooling, Y‐axis, sub‐spindle) than the machine actually has, you will face limitations or need upgrades.

---

5. Sample Pre-Purchase Checklist (English)

Here’s a ready checklist you can use or adapt:

• Confirm exact model, serial number, year of manufacture.
• Verify rated capacity: max machining diameter, length per chucking, spindle & sub spindle capacities.
• Confirm tooling configuration: number of OD tools, ID tools, live tools, back tools, and any axis options (Y, B, sub‐spindle).
• Check bar-feed/guide-bushing mode and bar capacity (if you plan bar stock).
• Inspect mechanical condition: spindle run-out, slides/axes travel smoothness, tool turret/indexing, guideways, sub-spindle (if present).
• Review control system: control brand/version, program library, connectivity, live tooling control.
• Examine documentation: manuals, service/maintenance logs, spare parts availability.
• Perform or request test run of representative part(s): check finish, accuracy, cycle time, repeatability.
• Inspect auxiliary systems: chip conveyor, coolant system, mist collector, bar loader, tooling inventory.
• Confirm infrastructure compatibility: utilities, power supply, floor/foundation, ambient conditions.
• Budget relocation/installation/commissioning costs: rigging, foundation, leveling, calibration, operator training.
• Verify spare parts availability and cost for high‐wear components (guide bushing, spindles, live tooling modules).
• Confirm negotiation protects you: condition guarantee, return test, workshop inspection rights before shipping.

---

6. Installation & Commissioning Timeline

Here’s a high-level timeline for installing the used machine:

1. Transport & Delivery: Machine dismantled (if necessary), shipped, unloaded at your site.
2. Placement & Setup: Level the machine, anchor or shim as required, connect utilities (power, coolant, air, chip conveyor, mist collector).
3. Dry-Run Testing: Move axes without cutting, index tools, test spindle & sub‐spindle (if fitted), test live tooling (if fitted).
4. Calibration & Alignment: Check axis alignment, spindle run-out, guide bushing alignment, tool offsets.
5. Load Test/Production Run: Run sample parts, verify tolerances, surface finishes, cycle time.
6. Operator Training & Handover: Train operators on programs, tooling changes, maintenance routines.
7. Go-Live & Monitoring: Machine enters production; monitor first lots, log performance, adjust offsets or tooling as needed.
8. Preventive Maintenance Setup: Establish schedule for tool change, coolant and chip system maintenance, spindle bearing review, guide bushing inspection.

---

7. Summary

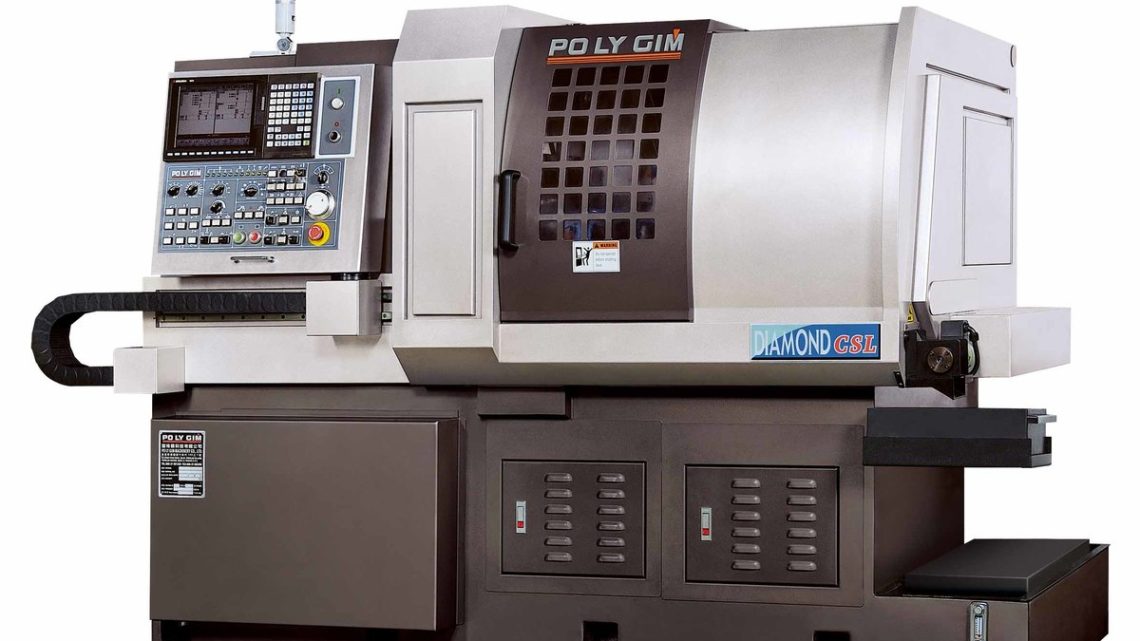

Buying a used PoLyGim Diamond 32CSL can be a strong investment for precision parts, long slender workpieces, high-throughput Swiss-type machining—but only if you do your homework:

• Ensure the machine’s specs/accessories match your workpieces and process demands.
• Inspect mechanical, control, and documentation condition thoroughly.
• Don’t underestimate relocation, installation, calibration and commissioning costs.
• Plan for spare parts, tool inventory, and operator training.
